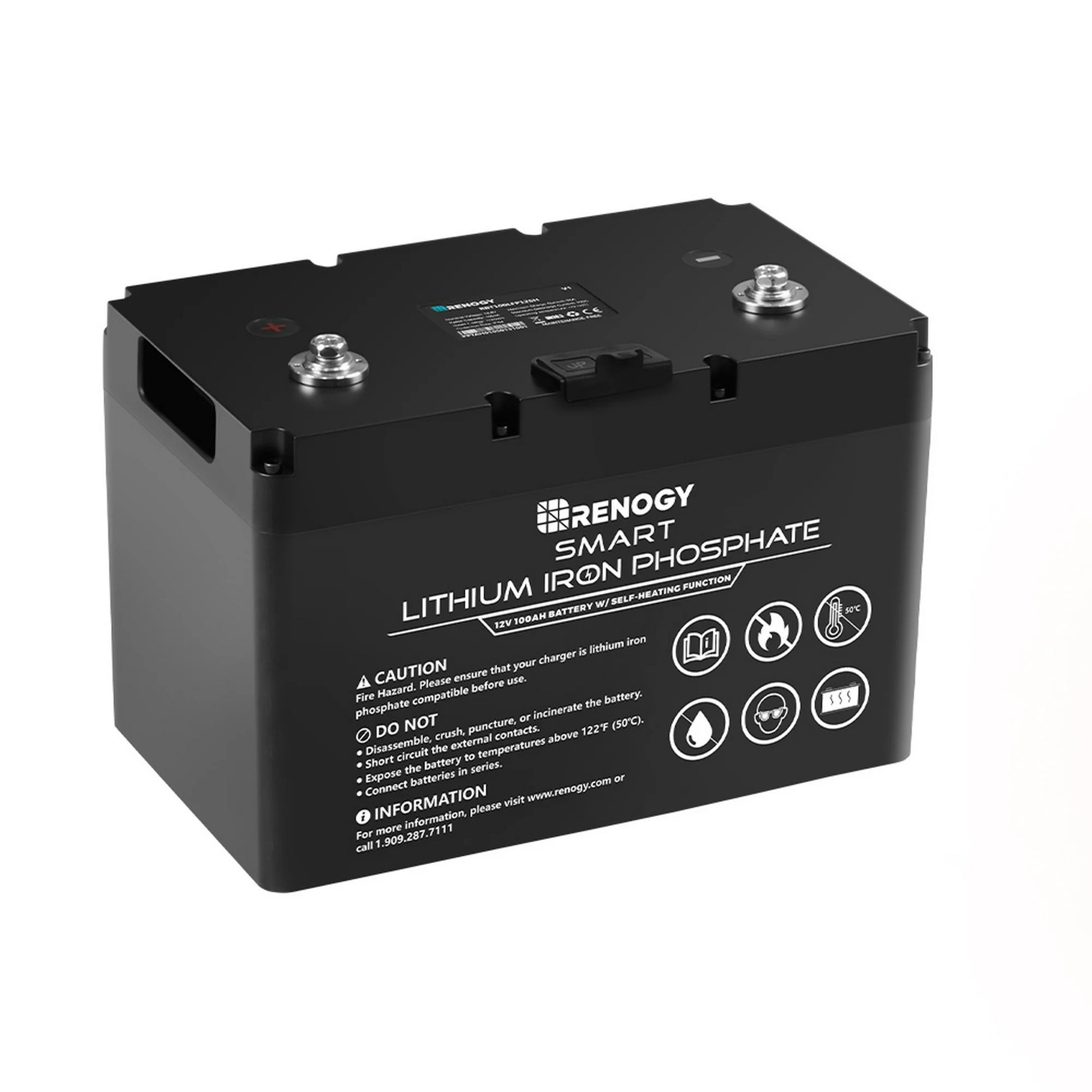

Renogy Smart Lithium-Iron Phosphate Battery 12V 100Ah w/Self-Heating Function for RV, Solar, Marine, and Off-grid Applications

Key Features

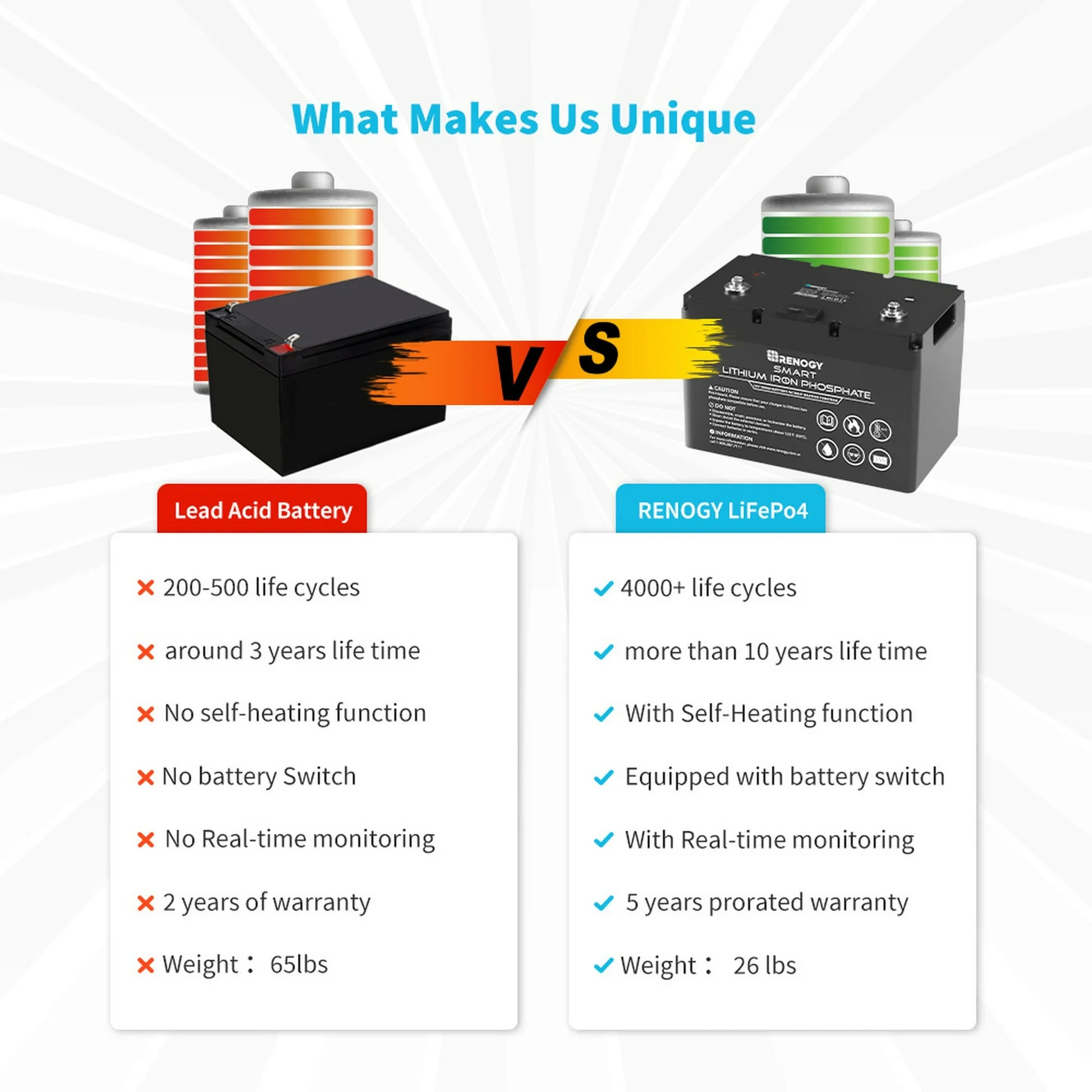

• Uncompromising Quality: State-of-the-art battery cells ensure a lifespan of more than 4000 cycles, a 100A continuous discharge current, and a wide range of operation temperatures.

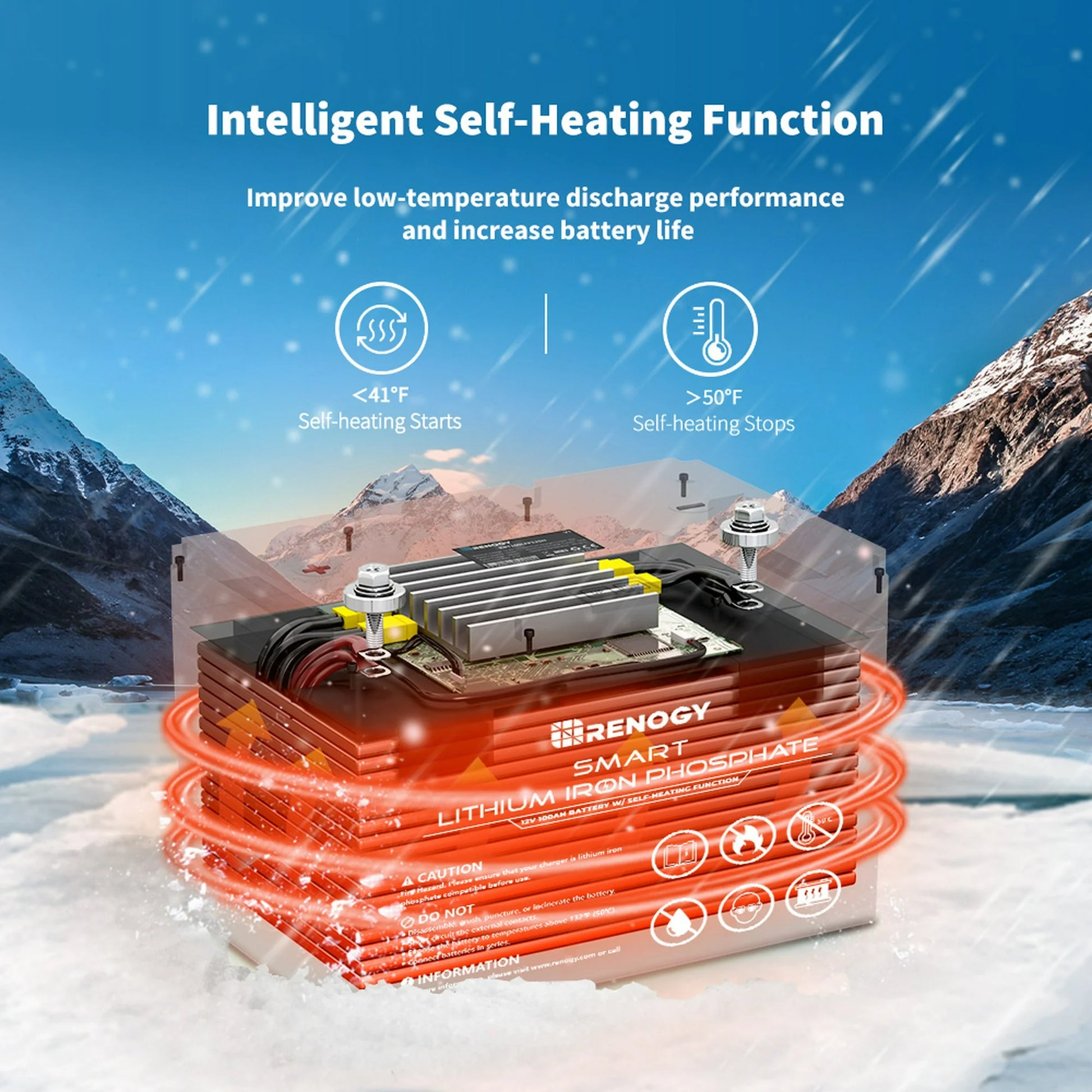

• Self-Heating Function: The intelligent self-heating function will start operating automatically once the battery’s core temperature drops below 41°F (5°C), effortlessly keeping your battery charged in cold environments.

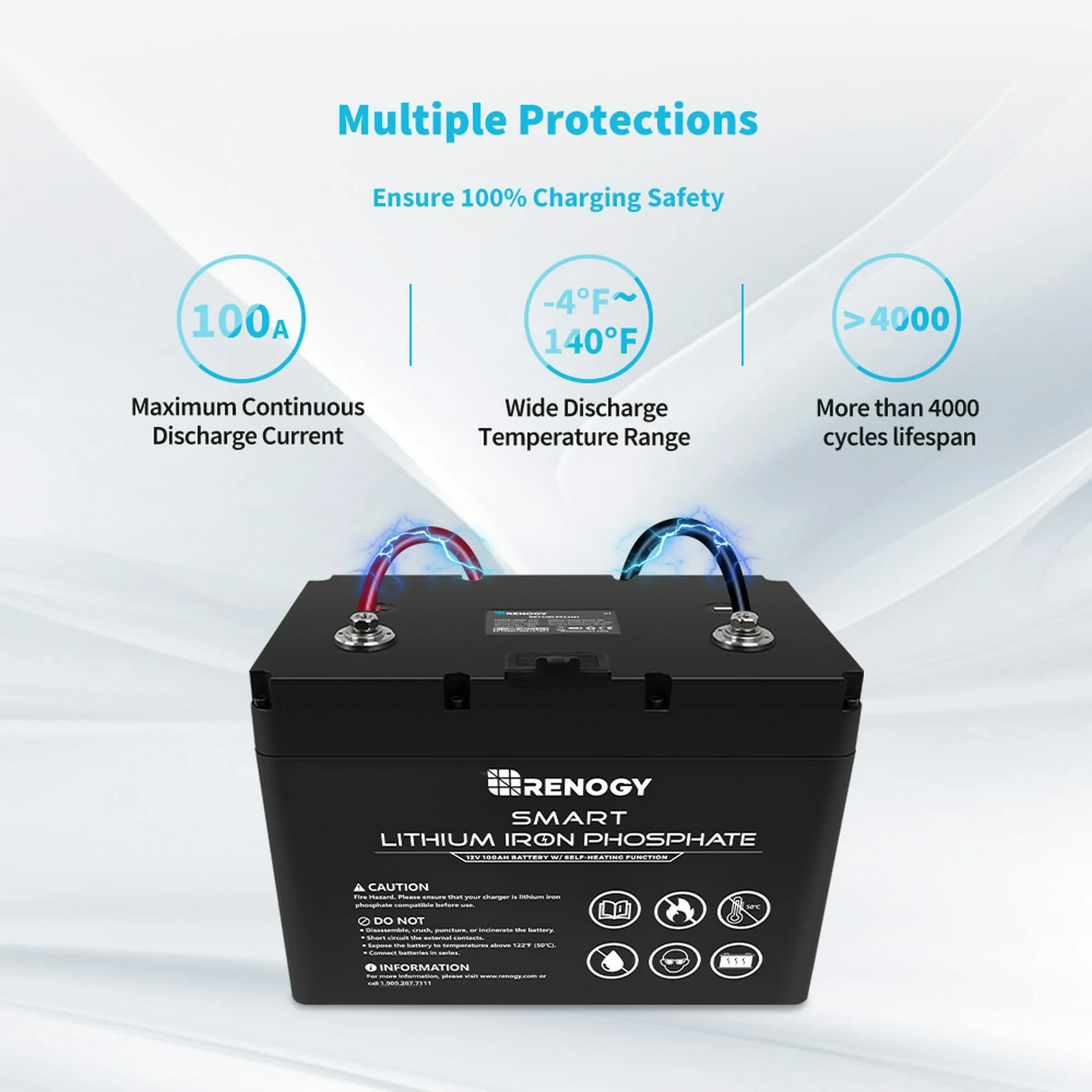

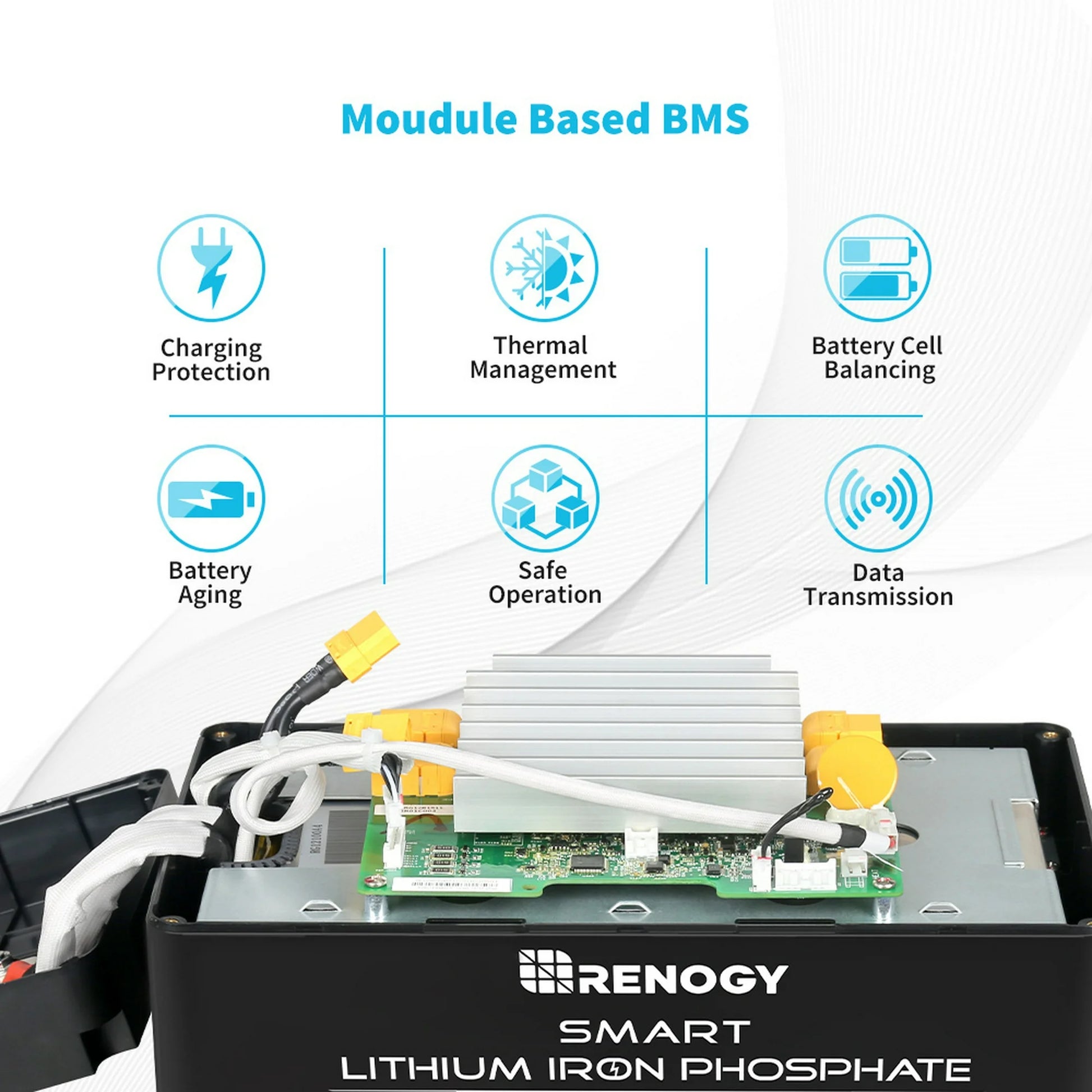

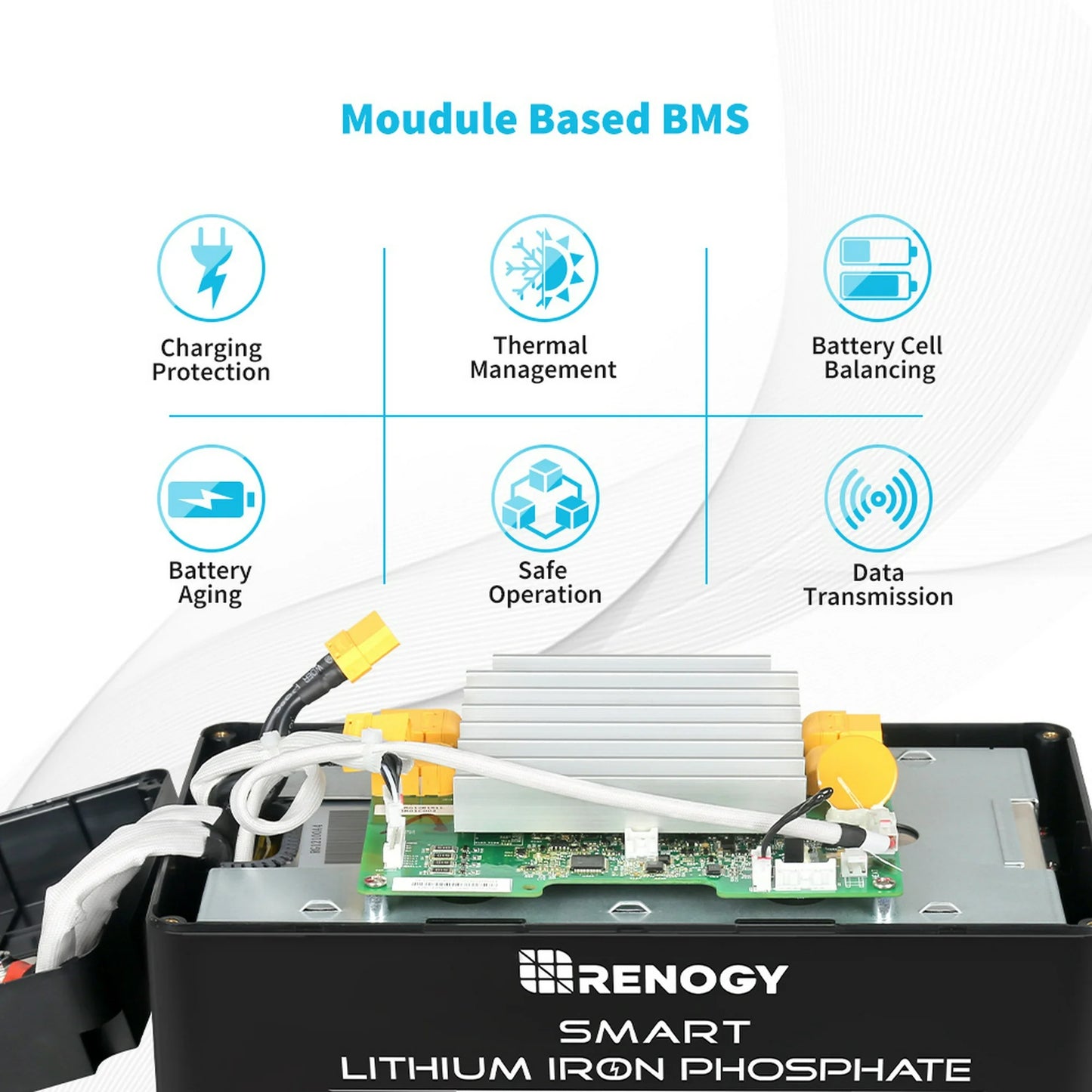

• Reliable BMS System: The state-of-the-art battery management system (BMS) with high-performance dual-processors provides short circuits, overcharging, and over-temperature protection while maintaining a balanced voltage across all cells.

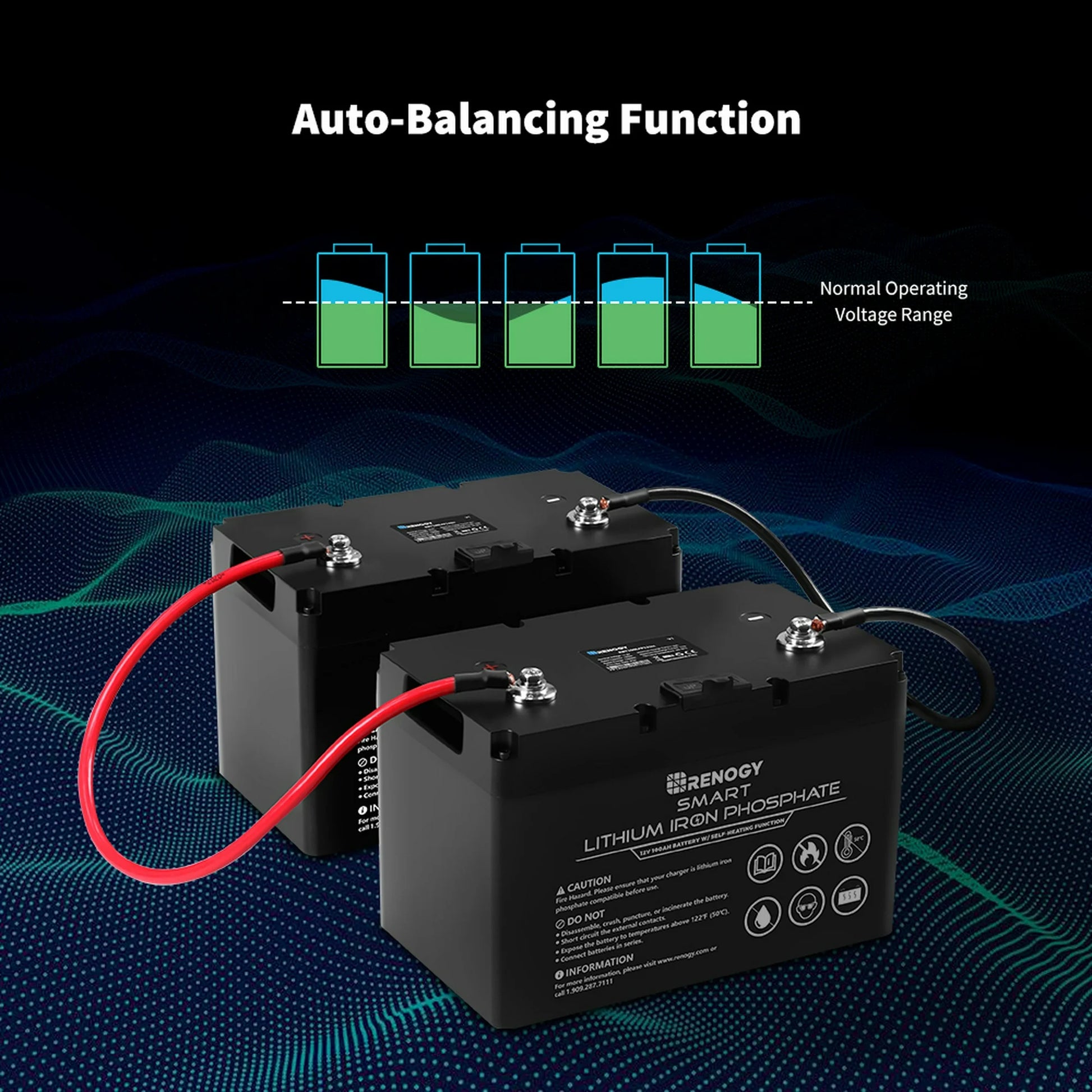

• Auto-balancing Function: Easily connect multiple batteries in parallel with the auto-balancing function to improve the average charging efficiency for your batteries in the long term.

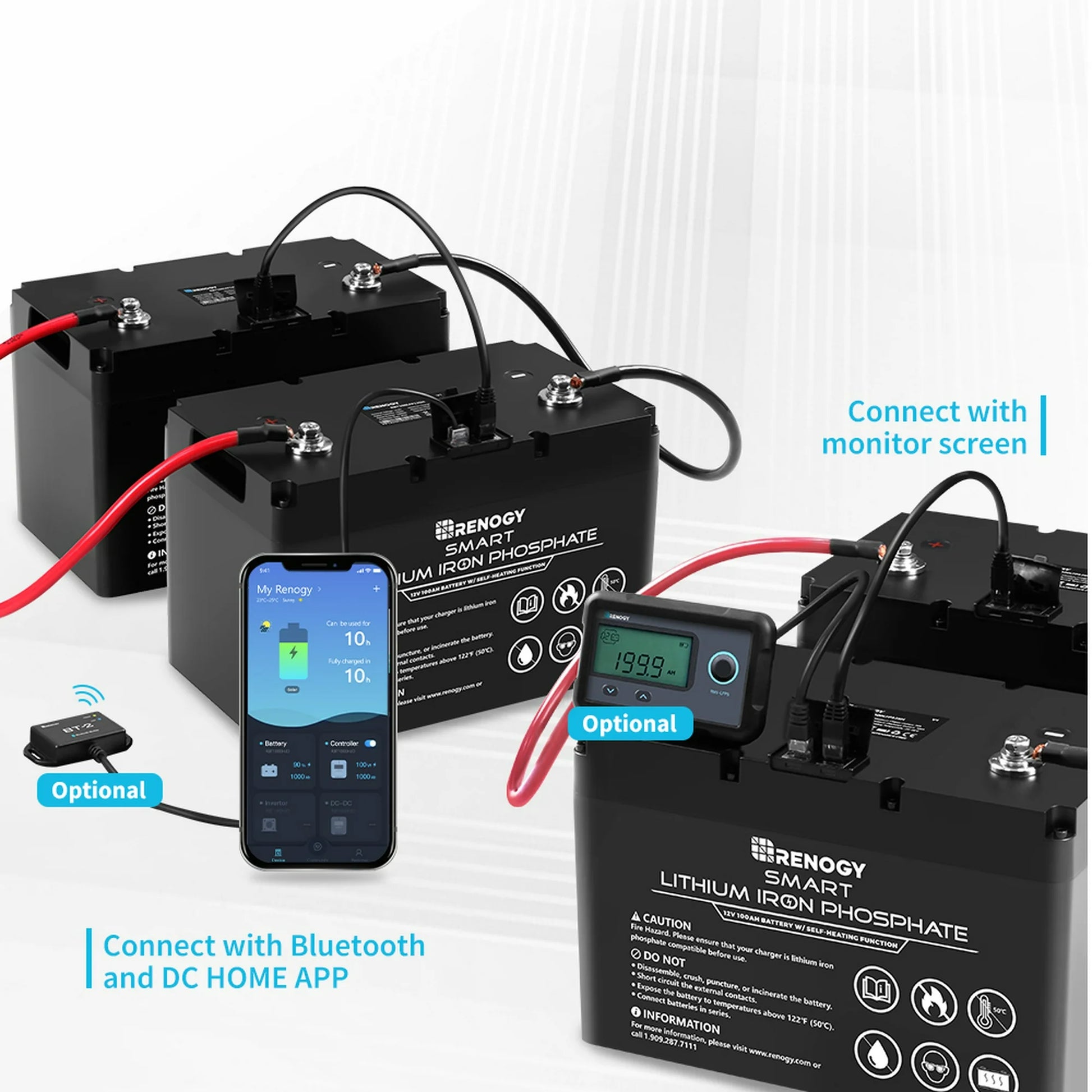

• Real-time monitor: The battery features RS485 communication ports—enabling communication between batteries, external devices (BT-2 Bluetooth Module or Monitoring Screen), and host computers for you to monitor the charging status in real-time in Renogy DC Home APP.

Specification

• Rated Capacity: 100Ah
• Nominal Voltage: 12.8V
• Voltage Range: 10~14.8 V
• Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
• Maximum Continuous Charging Current: 50A
• Maximum Continuous Discharging Current: 100A
• Discharging Voltage Range: 10V~14.4V
• Storage Temperature: -13F~149℉
• Automatically Self-heating function: Temperature<41°F
• Connection Method: Parallel

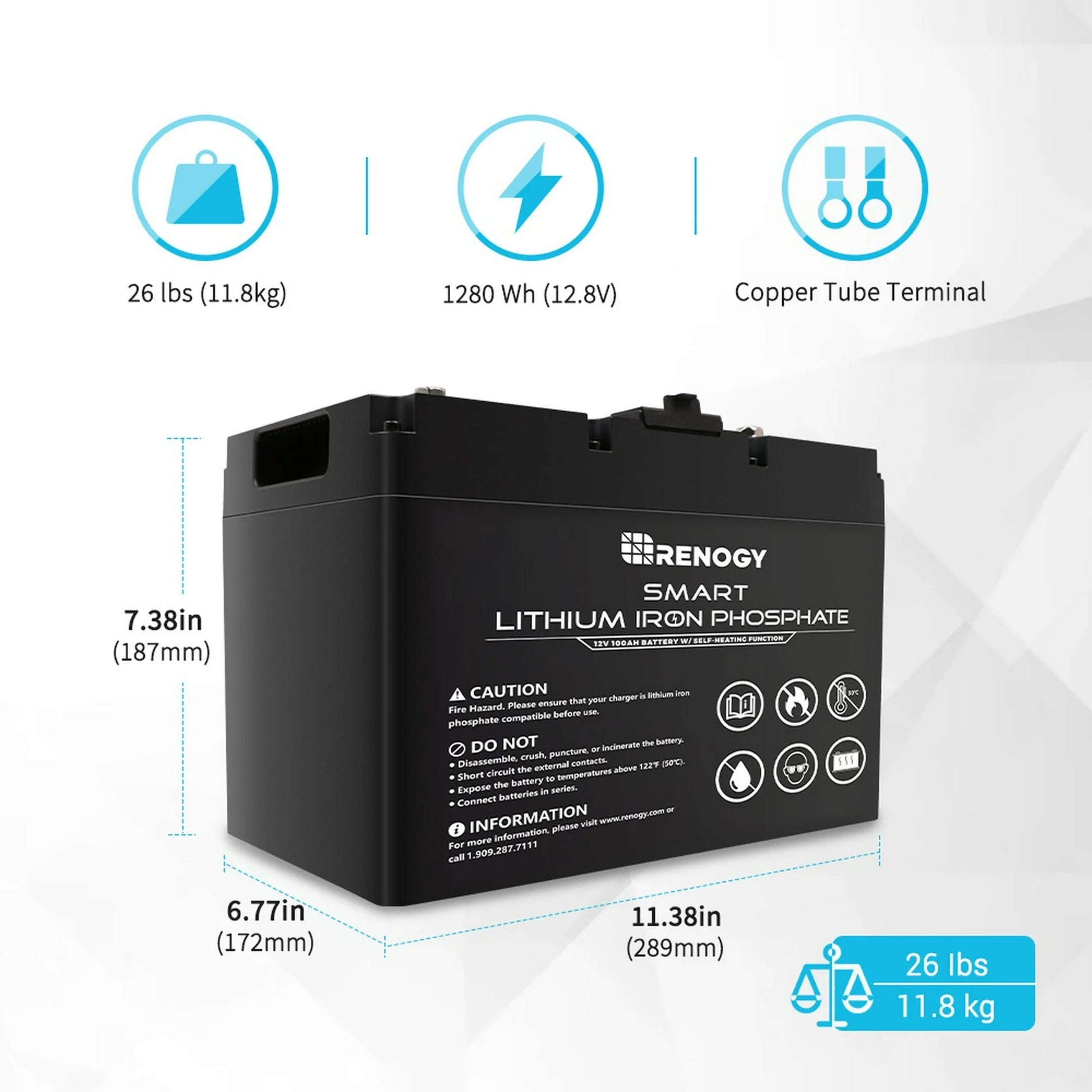

• Dimensions: 11.4 x 6.8 x 7.4 inch
• Weight: 26 lbs.
• Charge Temperature: 32~131°F
• Discharge Temperature: -4~140°F
• Protection Rate: IP54
• Communication Port: RJ45 (RS485 Protocol)
• Insulation Resistance: 500V DC, ≥ 10 MΩ

Warranty

• 5-years Prorated Warranty

PACKAGE INCLUDES

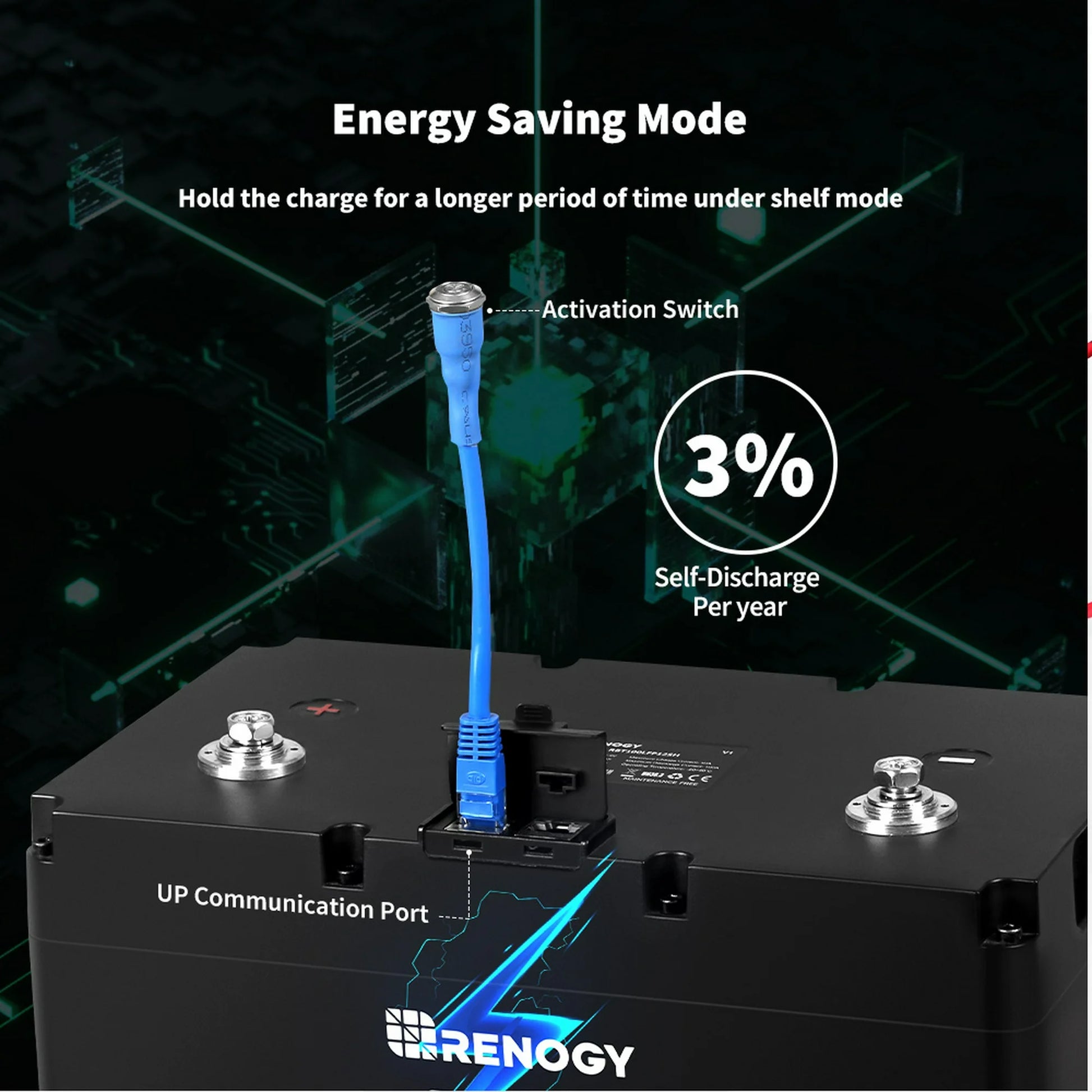

• 1*12V 100Ah Smart Lithium Iron Phosphate Battery, 2*M8 Bolts, 1*Activation switch
