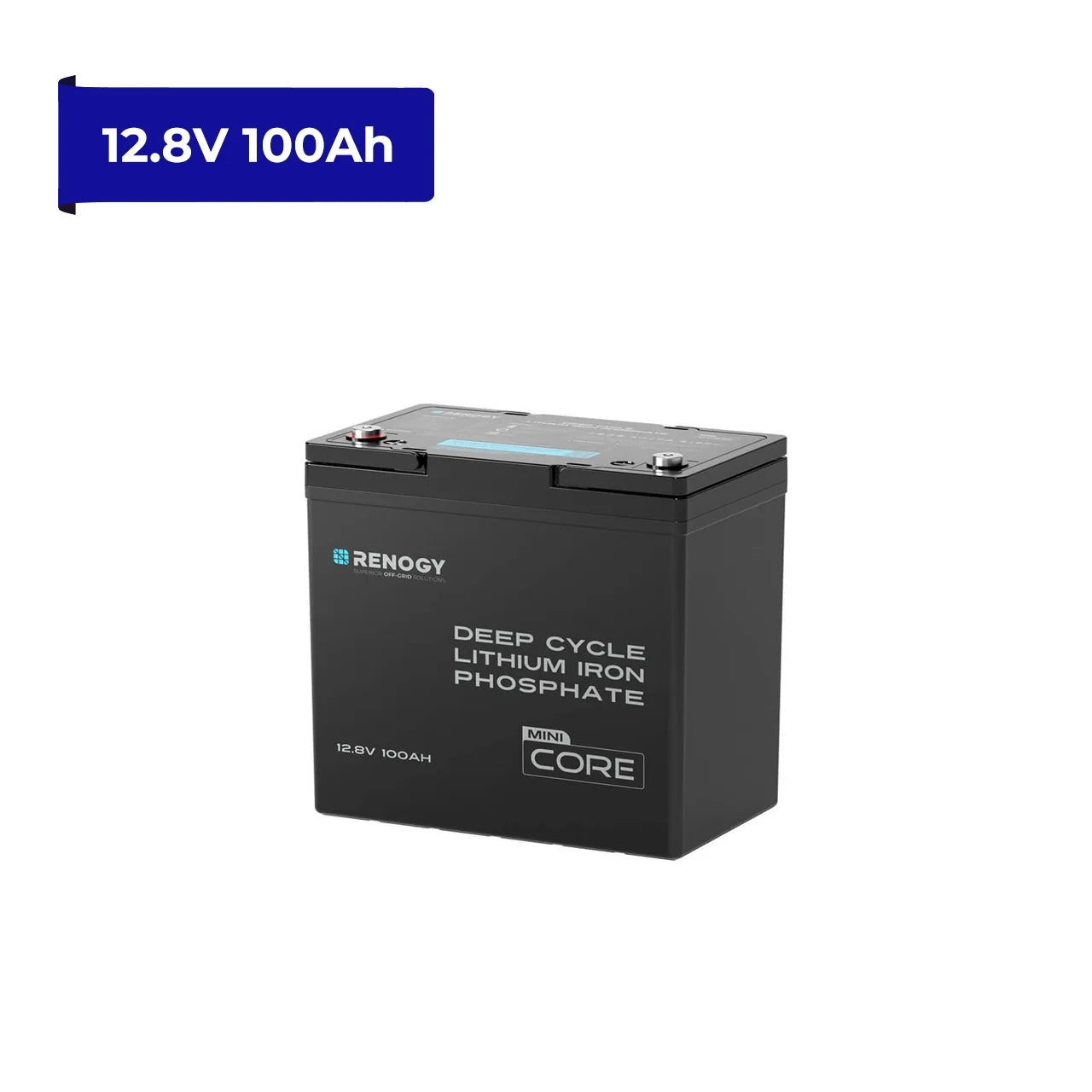

Renogy Core Mini 12V 100Ah LiFePO4 Lithium Battery, Ultra-Compact Size 5000+ Deep Cycle 100A BMS for RV, Marine, Solar System

【Ultra-Compact Design】50% smaller than Group 31 batteries and 13% more compact than 12.8V competitors, fitting tight spaces in RVs, marine, or outdoor gear (Dimensions: 9.02 x 5.43 x 8.39").

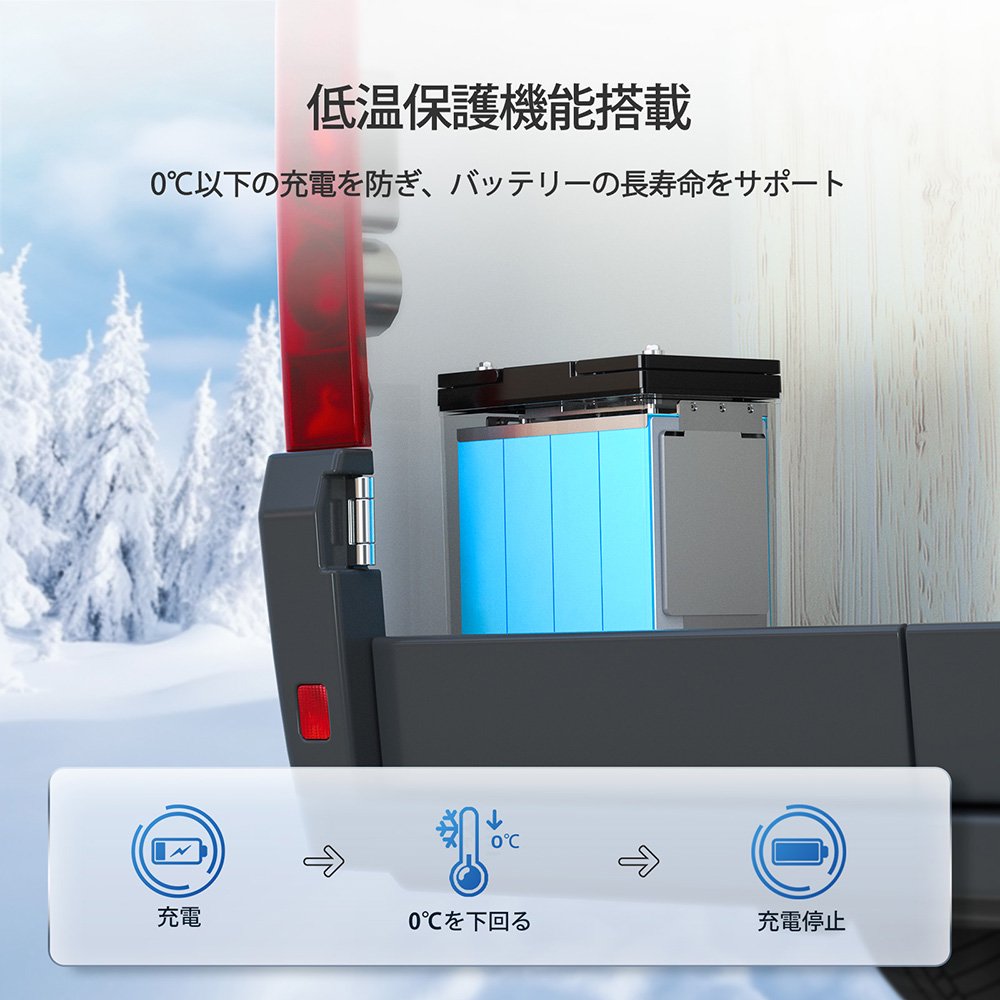

【100A BMS with Ultimate Safety】Protects against overcharge/undercharge, overcurrent, short circuits, and extreme temperatures with low-temp charging cutoff.

【Remote Monitoring Compatibility】Works with Renogy 300A Shunt for real-time tracking via DC Home app or Renogy ONE monitor.

【Multi-Oriented Installation】Mounts in any direction except upside down for flexible space optimization.

【Rugged Outdoor Performance】IP65-rated casing and UL-certified EV-grade cells with metallic spacers withstand harsh vibrations and rough environments.

【Long-Lasting Durability】5,000 cycles at 80% DoD, outperforming lead-acid batteries in lifespan and efficiency.

【300A Peak Surge Power】Delivers 300A surge current in 5 seconds for high-demand appliances or trolling motors.

【Certified Safety & Reliability】UL, FCC, and CE certified for global compliance and trusted performance.

【Space-Saving Installation】Requires minimal 2-4" clearance above and 8" on the busbar side for easy setup.

【Lead-Acid Replacement Advantage】Lighter, more compact LiFePO4 design matching lead-acid power for RVs, marine, and off-grid systems.

【All-Weather Durability】Resists water, dust, and extreme temperatures for reliable use in any climate.

【5-Year Prorated Warranty】5-year prorated coverage for material and workmanship defects, ensuring long-term reliability and peace of mind.

Specifications

Battery Type: Lithium Iron Phosphate

Nominal Voltage: 12.8V

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage Range: 10V to 14.8V

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Peak Discharge Current: 300A@5s

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Temperature Range: 32°F to 122°F (0°C to 50°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

Operation Relative Humidity: 10% to 95%

Connection Method: Series & Parallel (4S4P)

Terminal Bolt Size: M8 x 1.25 x 12 mm

Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m

Protection Rating: IP65

Dimensions: 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)

Weight: 21.8 lbs / 9.9 kg

Accessories

Long Terminal Bolts (2): 2 x M8 x 1.25 x 15 mm
