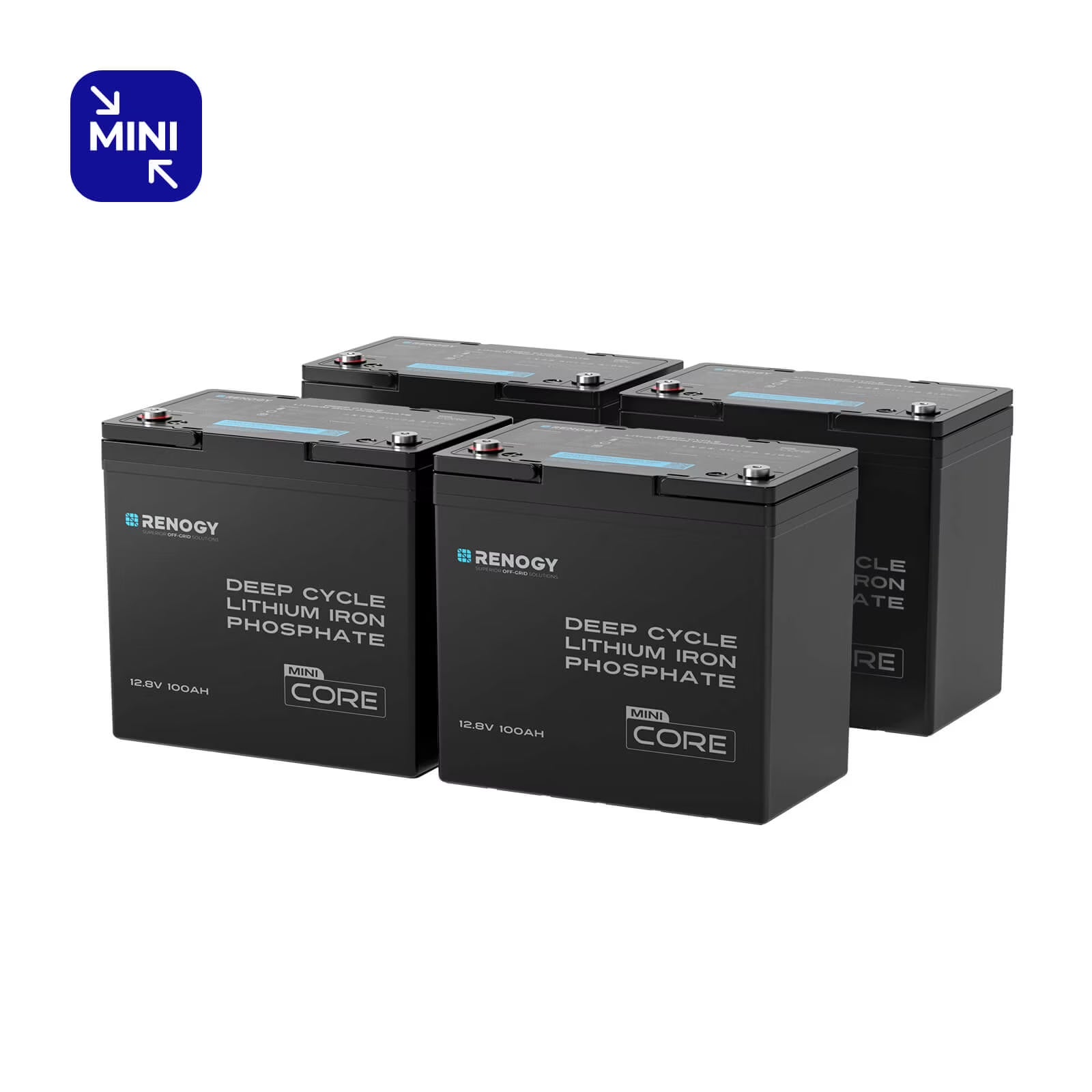

Renogy Core Mini 12V 100Ah LiFePO4 Lithium Battery 4Pack, Ultra-Compact Size 5000+ Deep Cycle 100A BMS for RV, Marine, Solar System

Renogy Core Mini 12V 100Ah LiFePO4 Lithium Battery 4Pack, Ultra-Compact Size 5000+ Deep Cycle 100A BMS for RV, Marine, Solar System

$1,640.00 USD
$1,640.00 USD
Sale Sold out

Product details


The Renogy Core Mini 12.8V 100Ah LiFePO4 battery redefines portable energy storage with its unmatched compact design and robust performance, ideal for space-constrained applications like RVs, boats, tiny homes, and solar systems. Weighing just 21.9 lbs and measuring a mere 9.4" x 6.7" x 6.3", this battery is 83% lighter and 70% smaller than equivalent lead-acid batteries, offering unparalleled convenience for mobility and installation. Built with premium LiFePO4 chemistry, it ensures exceptional safety, thermal stability, and a lifespan of 5000+ charge cycles, drastically reducing long-term replacement costs. Its built-in smart BMS safeguards against overcharge, overdischarge, and short circuits, while supporting high-discharge applications up to 300A peak (3000W continuous). Perfect for solar setups, the Core Mini pairs seamlessly with Renogy’s 300A shunt for remote monitoring and integrates with popular MPPT charge controllers. By outperforming lead-acid alternatives in weight, space, and durability, this mini powerhouse delivers reliable, eco-friendly energy for adventurers and off-grid enthusiasts who demand efficiency without compromising on performance.

  • 【Ultra-Compact Design】50% smaller than Group 31 batteries and 13% more compact than 12.8V competitors, fitting tight spaces in RVs, marine, or outdoor gear (Dimensions: 9.02 x 5.43 x 8.39").

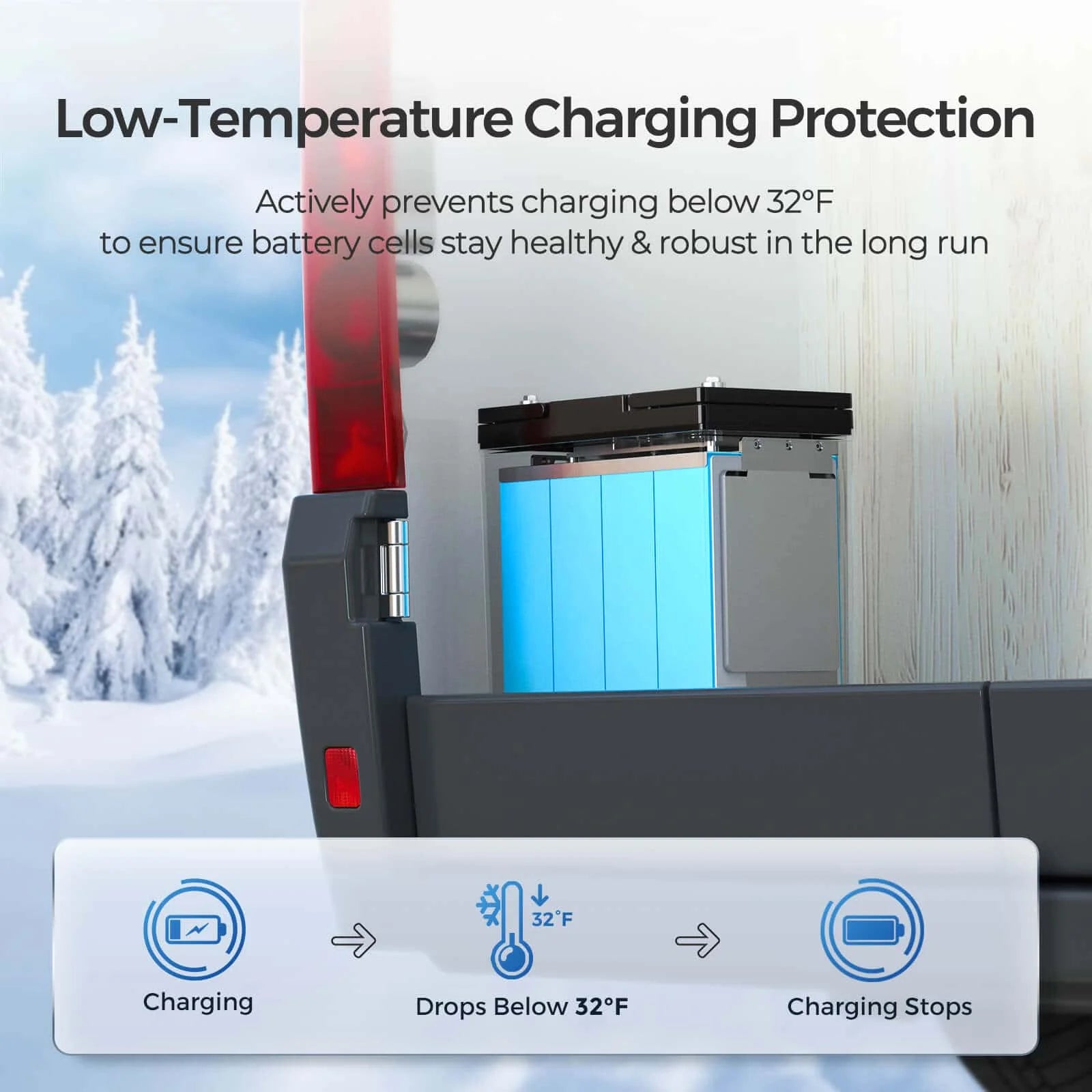

  • 【100A BMS with Ultimate Safety】Protects against overcharge/undercharge, overcurrent, short circuits, and extreme temperatures with low-temp charging cutoff.

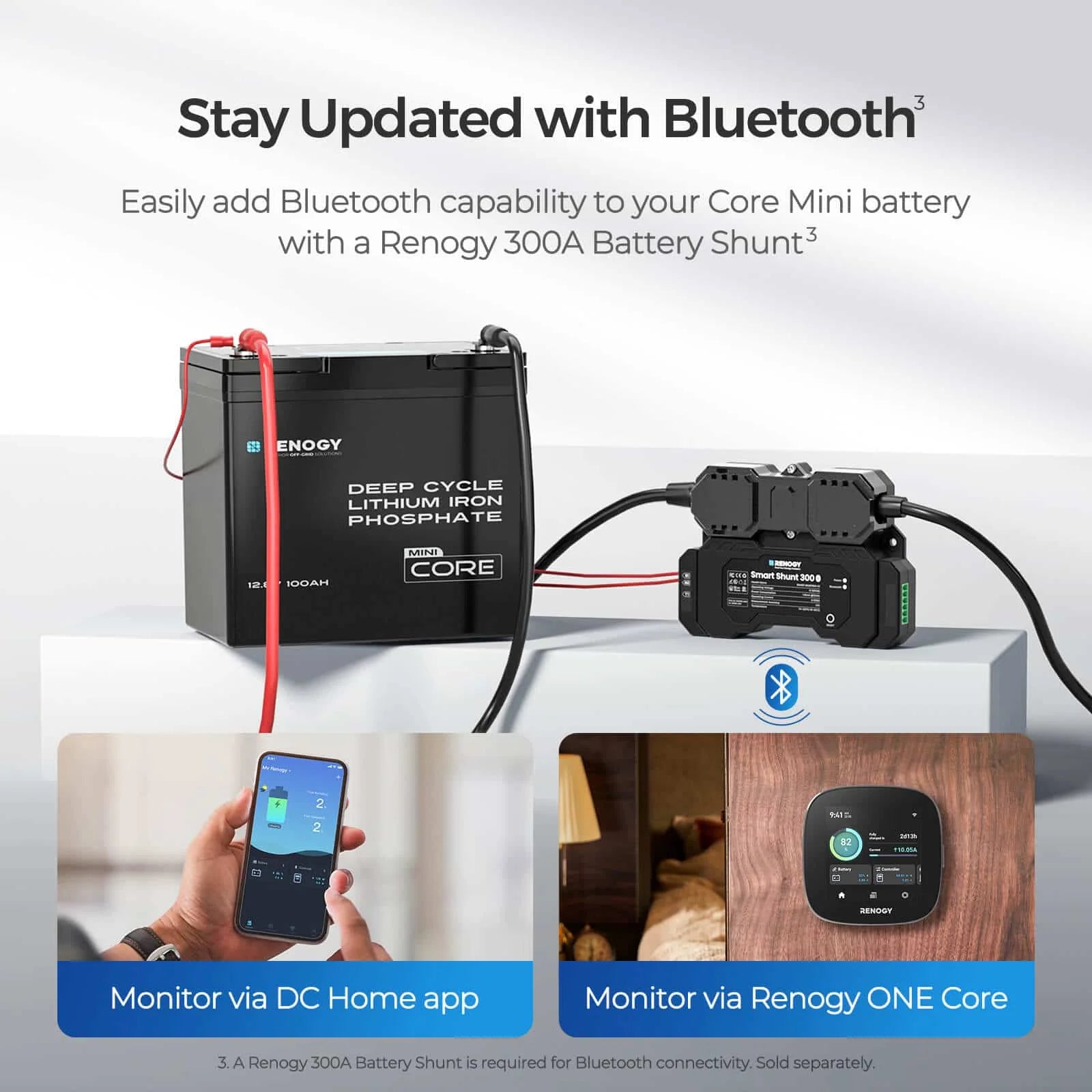

  • 【Remote Monitoring Compatibility】Works with Renogy 300A Shunt for real-time tracking via DC Home app or Renogy ONE monitor.

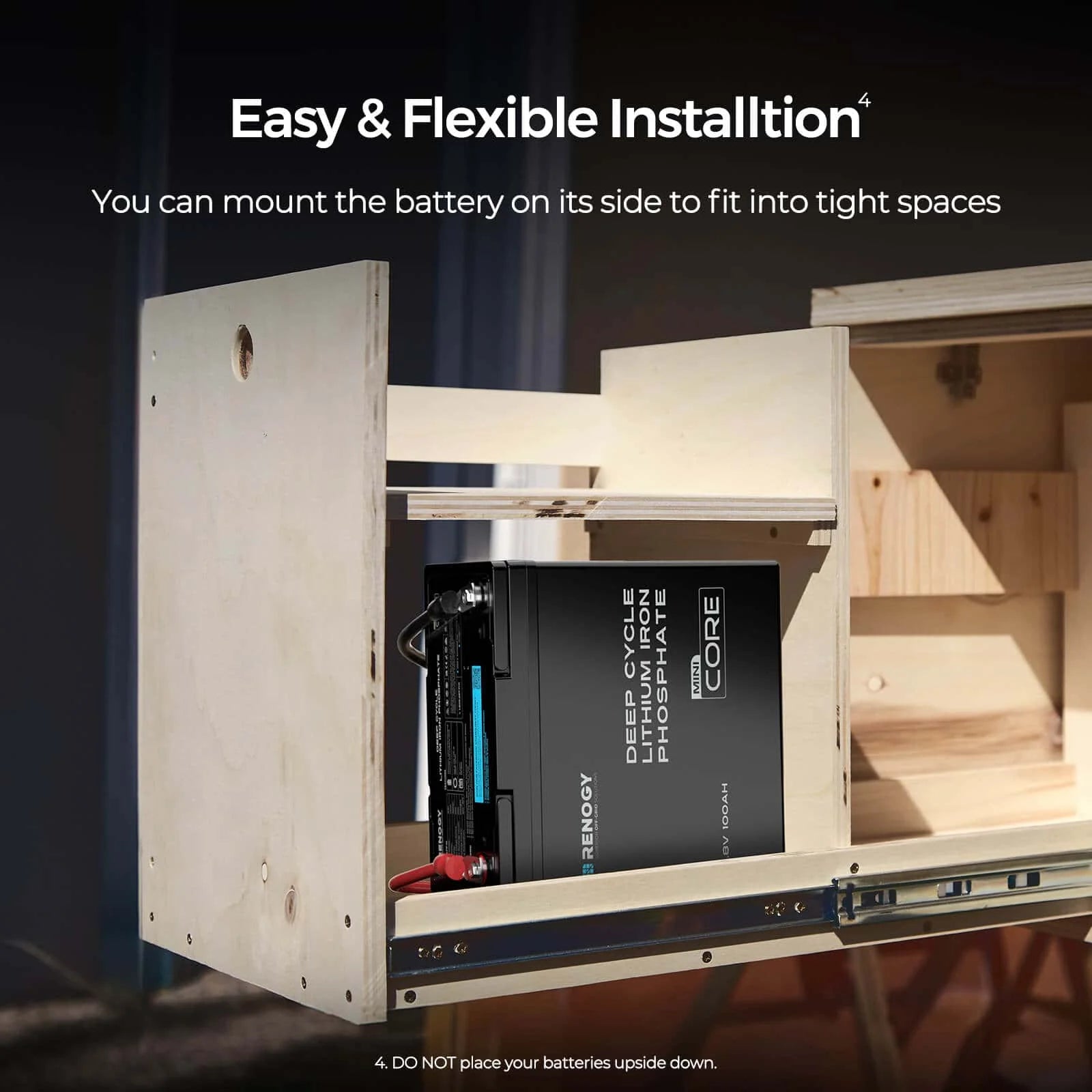

  • 【Multi-Oriented Installation】Mounts in any direction except upside down for flexible space optimization.

  • 【Rugged Outdoor Performance】IP65-rated casing and UL-certified EV-grade cells with metallic spacers withstand harsh vibrations and rough environments.

  • 【Long-Lasting Durability】5,000 cycles at 80% DoD, outperforming lead-acid batteries in lifespan and efficiency.

  • 【300A Peak Surge Power】Delivers 300A surge current in 5 seconds for high-demand appliances or trolling motors.

  • 【Certified Safety & Reliability】UL, FCC, and CE certified for global compliance and trusted performance.

  • 【Space-Saving Installation】Requires minimal 2-4" clearance above and 8" on the busbar side for easy setup.

  • 【Lead-Acid Replacement Advantage】Lighter, more compact LiFePO4 design matching lead-acid power for RVs, marine, and off-grid systems.

  • 【All-Weather Durability】Resists water, dust, and extreme temperatures for reliable use in any climate.

  • 【5-Year Prorated Warranty】5-year prorated coverage for material and workmanship defects, ensuring long-term reliability and peace of mind.

  • Specifications

    Battery Type: Lithium Iron Phosphate

    Nominal Voltage: 12.8V

    Rated Capacity: 100Ah (0.5C, 25℃)

    Voltage Range: 10V to 14.8V

    Maximum Charge Current: 100A

    Maximum Discharge Current: 100A

    Peak Discharge Current: 300A@5s

    Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

    Charge Temperature Range: 32°F to 122°F (0°C to 50°C)

    Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

    Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

    Operation Relative Humidity: 10% to 95%

    Connection Method: Series & Parallel (4S4P)

    Terminal Bolt Size: M8 x 1.25 x 12 mm

    Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m

    Protection Rating: IP65

    Dimensions: 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)

    Weight: 21.8 lbs / 9.9 kg

  • Accessories

    Long Terminal Bolts (2): 2 x M8 x 1.25 x 15 mm
