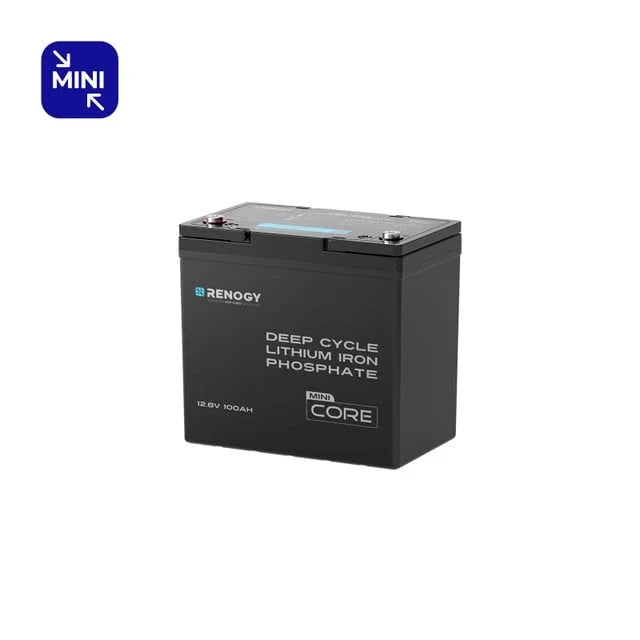

Renogy Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

Power Beyond Limits—Renogy 12V 100Ah Core Battery | 106Ah Capacity & 300A

All-Round BMS Protection: Built-in 100A BMS with low-temperature cutoff ensures safe charging below 32°F and stable 100A discharge control.

106Ah Surge Capacity: Delivers 6% extra usable power (106Ah) for extended runtime during storms or emergencies.

300A Instant Burst: Starts heavy loads like inverters with 300A peak current for 10 seconds, outperforming standard LiFePO4.

20.48kWh Scalability: Expandable to 16 units via series/parallel connections for whole-home backup or off-grid systems.

RV-Ready Toughness: Rugged impact-resistant design withstands road vibrations and harsh travel conditions.

Renogy Eco-Compatibility: Pre-synced with solar controllers/inverters for 1-hour lead-acid-to-lithium upgrades.

100Ah Core vs. Lead-acid——Upgrade to lithium for next-level performance

Power Output: Deliver up to 2.3 times more power than lead-acid batteries, enabling higher energy efficiency.

Weight: 61% lighter than lead-acid counterparts, enhancing portability and ease of installation.

Lifespan: Last up to 10 times longer than lead-acid batteries, significantly reducing replacement frequency.

Lifetime Cost: Achieve 81% lower lifetime costs compared to lead-acid batteries due to reduced maintenance and longevity.

100Ah Core vs. Other LiFePO4——Unmatched performance for your most demanding energy needs

6% More Energy: 1356Wh total capacity vs. standard LiFePO4's 1200Wh limit.

Stronger Peak Output: 300A sustained for 10 seconds to start heavy loads, compared to standard LiFePO4's weaker 280A for only 5 seconds.

Flexible Configurations: Supports series, parallel, or series-parallel connections, while standard LiFePO4 is limited to parallel-only setups.

ELECTRICAL SPECIFICATIONS

Battery Type: Lithium Iron Phosphate

Rated Capacity (0.5C, 25°C): 100Ah

Voltage: 12V

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

CHARGING PARAMETERS

Charge Voltage: 14.4V

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Charge Temperature Range: 32°F to 131°F (0°C to 55°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Connection Method: "Series (Up to 4);Parallel (Up to 8); Series & Parallel (4P4S)"

Communication Protocol: N/A

Recommended Terminal Torque: 10 N·m

Protection Rating: IP65

Housing Material: ABS

Terminal Bolt Size: M8.

Dimensions: 10.24 x 6.65 x 8.31 in (260 x 169 x 211 mm)

Weight: 23.15 lbs. (10.5 kg)

Package Includes

Core - 12V 100Ah Lithium Iron Phosphate Battery X1

Long Terminal Bolts X2

Long Terminal Bolts X1

WARRANTY FIRST, ALWAYS

✔5-Year Material and Workmanship Warranty: Defects? We’ve got you covered.
