Renogy 400 Watts 12 Volts Monocrystalline Solar RV Kit Off-Grid Kit with Adventurer 30A PWM LCD Charge Controller+ Mounting Brackets+ Male and Female Connectors+Solar Cables+Cable Entry housing

Renogy 400 Watts 12 Volts Monocrystalline Solar RV Kit Off-Grid Kit with Adventurer 30A PWM LCD Charge Controller+ Mounting Brackets+ Male and Female Connectors+Solar Cables+Cable Entry housing

$700.00 USD
$799.00 USD $700.00 USD
Sale Sold out
  • High solar cell efficiency : Monocrystalline 18.4%
    Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
  • EL tested solar modules; no hot-spot heating guaranteed
    Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
    TPT back sheet ensures smooth performance over a long period of time
    IP65 rated junction box provides complete protection against environmental particles and low pressure water jets



  • Sealed, Gel and Flooded charging algorithim ready 4-Stage battery charging process for a rapid, efficient, and safe battery charging
    Remote monitoring and control via Bluetooth



  • The Renogy Adventurer is equipped with multiple electronic protections: reverse current, overcharging, short-circuit and reversed polarity
    Pre-drilled holes on the back of the panel allow for fast and secure mounting



  • Key FeaturesReliable

    • EL tested solar modules; no hot-spot heating guaranteed
    • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
    • TPT back sheet ensures smooth performance over a long period of time
    • IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

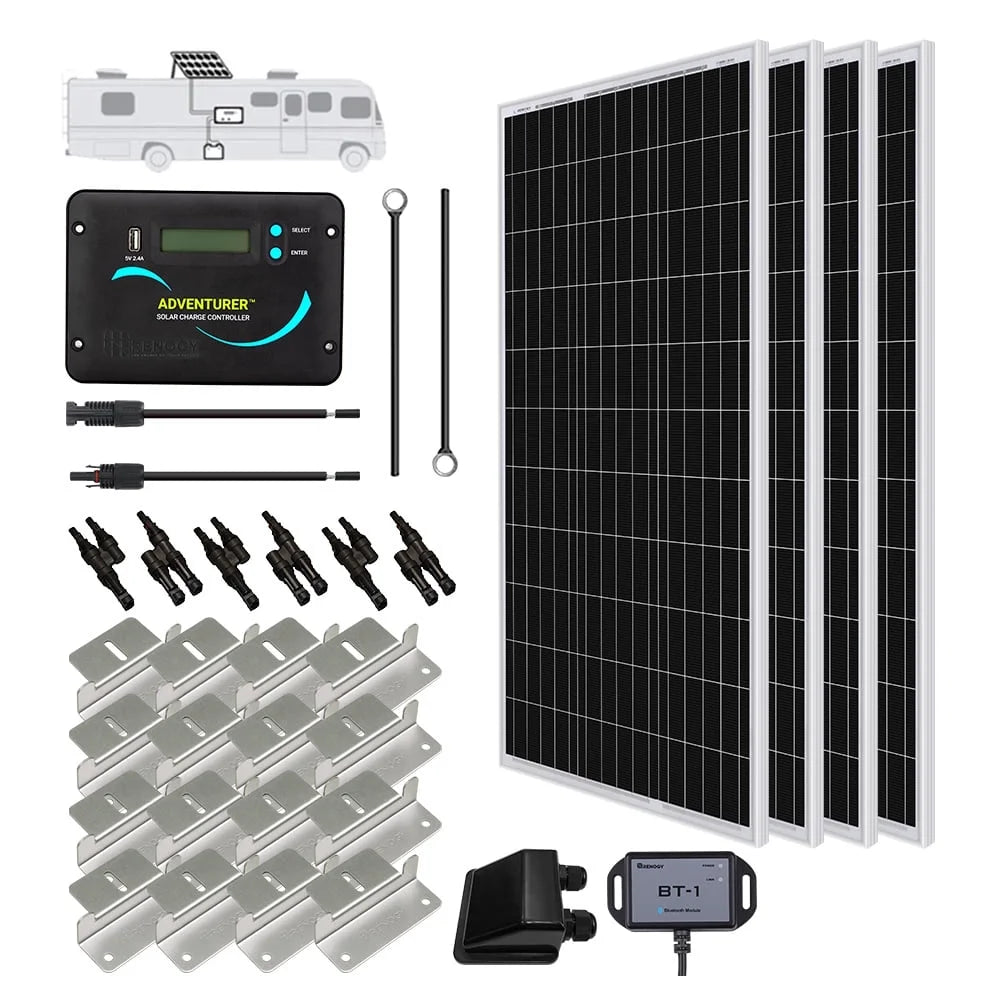

    Package Includes:

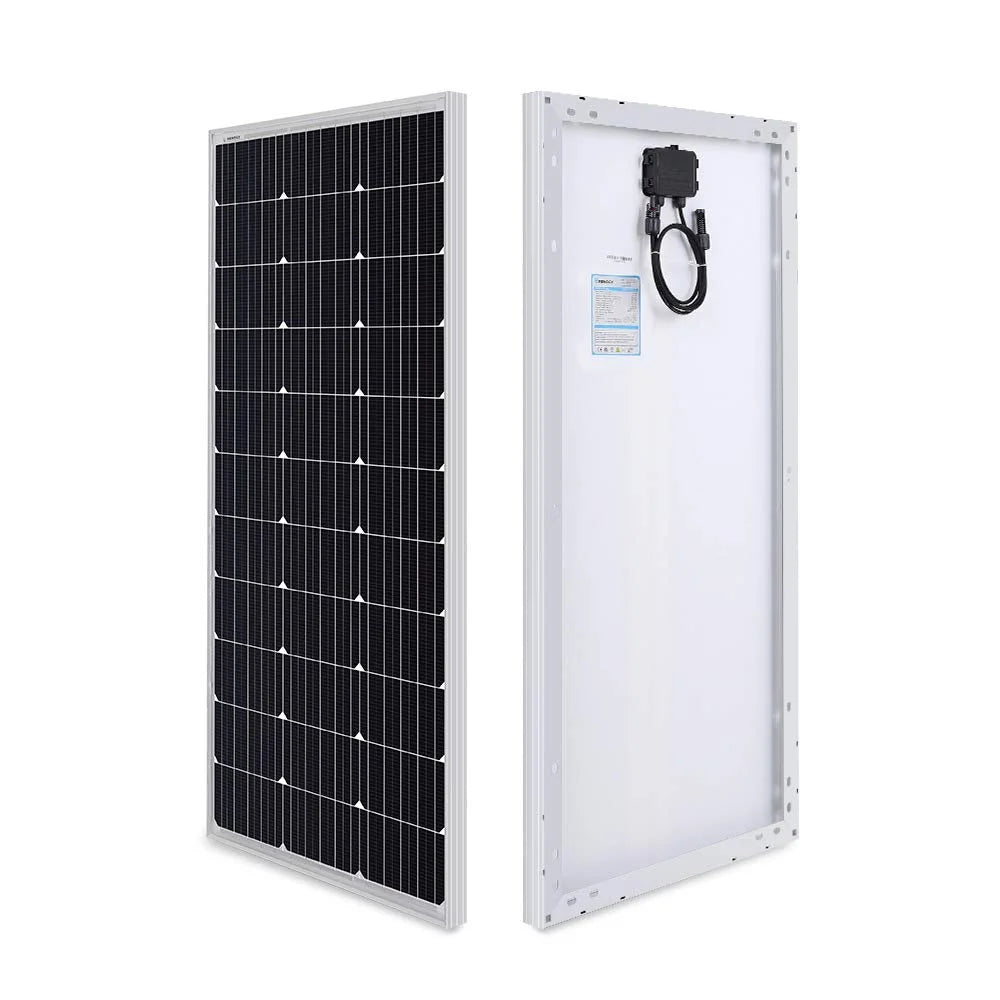

    Renogy 100W 12V Monocrystalline Solar Panel

    Maximum Power: 100w

    Maximum System Voltage: 600V DC (UL)

    Optimum Operating Voltage (Vmp): 18.6V

    Optimum Operating Current (Imp): 5.38A

    Dimensions: 42.4 X 20.0 X 1.38 inches

    Renogy 30ft 10AWG Adaptor Kit (A Pair)

    Length: 30ft

    AWG:10

    Rating Voltage: 600/1000V

    Renogy 16ft 10AWG Tray Cables (A Pair)

    Length: 16ft

    AWG: 10

    Rating Voltage: 600V

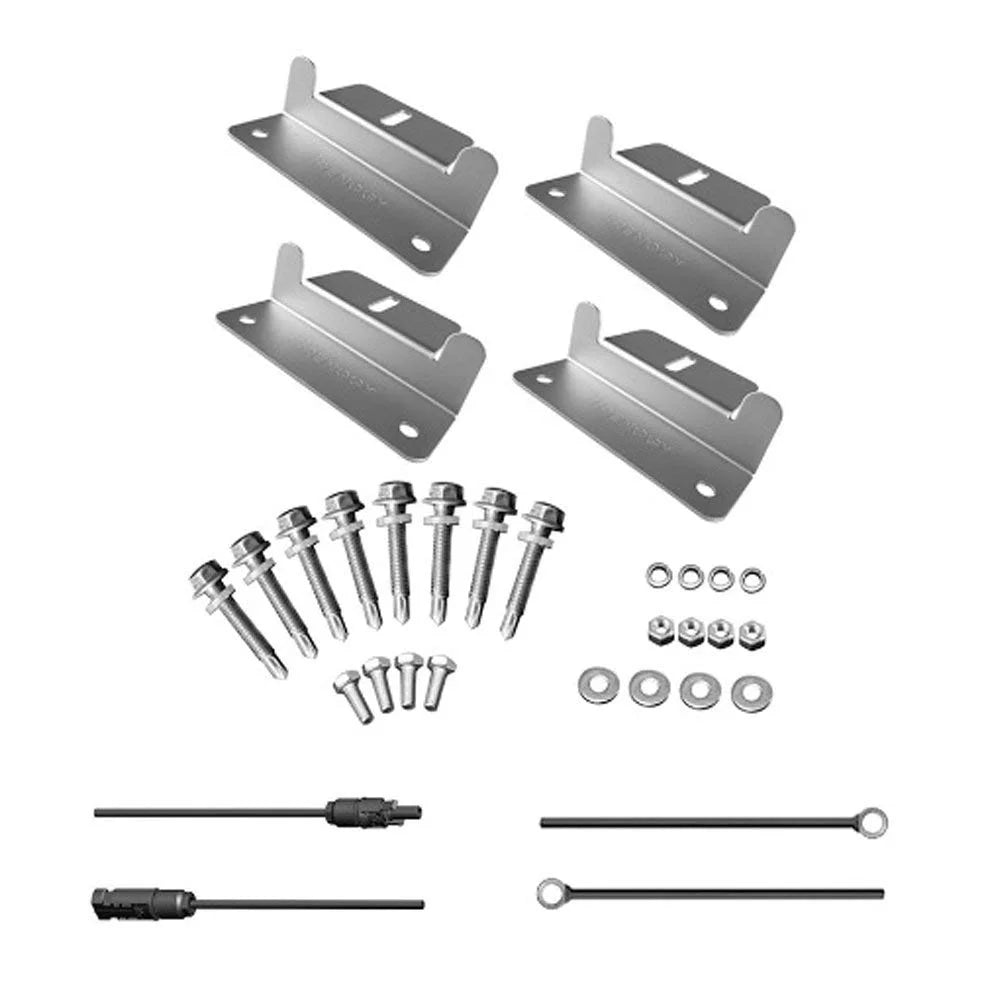

    Renogy Mounting Z Brackets (Set)

    Eight Long Cap Bolts and Four Short Bolts

    Four Spring Washers and Four Washers

    Four Z Shape Solar Panel Brackets

    Four Nuts

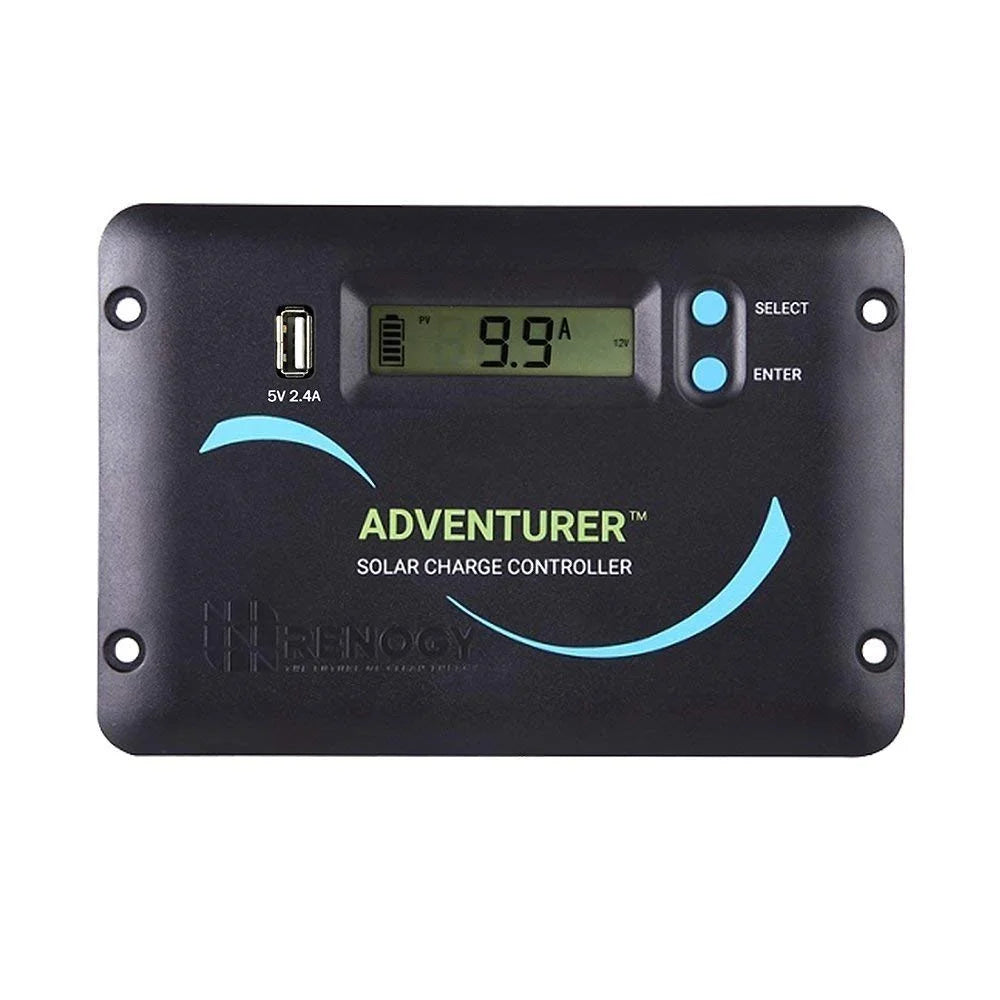

    Renogy Adventurer - 30A PWM Negative-Ground Charge Controller with LCD Display

    Nominal Voltage: 12 VDC

    Rated Charge Current: 30A

    Max. PV Input Voltage: 25 VDC

    Max. PV Input Power: 400W (12V)

    Renogy Cable Entry Housing

    Material: UV-resistant ABS Plastic

    Weight (each component): 7.9 oz.
    Recommended Adhesive: Sikaflex 252 or alike
    Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in
    Cable Gland Diameter Range: 6mm - 12mm

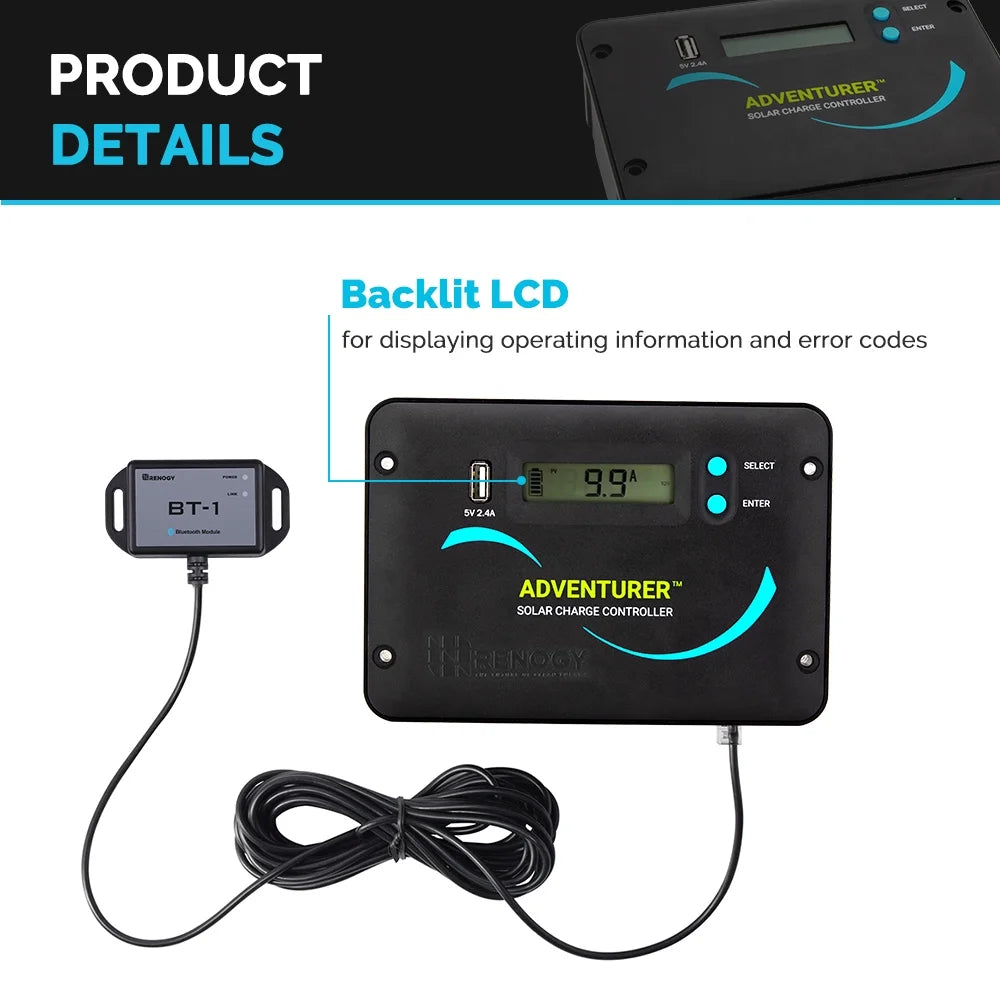

    Renogy BT-1 Bluetooth Module

    Standby Power Consumption: 0.04W

    Communication Range: ≤15m

    Dimensions: 2.6 X 2.01 X 0.61 In
    Renogy Solar  Y Branch Connectors

    Withstanding Voltage: 1000V DC(TUV), 600V(UL)

    Protection Degree: IP67, mated

    Wiring Size Range: 10, 12, 14 AWG

    Temperature: -40°F to +194°F

  • EL tested solar modules; no hot-spot heating guaranteed
  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
  • TPT back sheet ensures smooth performance over a long period of time
  • IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
