Renogy 100W Solar Pannel Kit with 30A PWM Charge Controller, 500Wh Daily Output, UL Certified Weatherproof Bluetooth Monitoring Expandable to 400W

Renogy 100W Solar Pannel Kit with 30A PWM Charge Controller, 500Wh Daily Output, UL Certified Weatherproof Bluetooth Monitoring Expandable to 400W

$250.00 USD
$299.00 USD $250.00 USD
Sale Sold out
  • 【Efficient Performance】The Starter Kit will produce an average of 500Wh of electricity per day (Based on 5 hours of direct sunlight condition). The Cell Efficiency can reach 22%. The bypass diodes ensure that the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance.
  • 【Solid Quality】Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage and distortion, improving cell performance and providing a long service life.

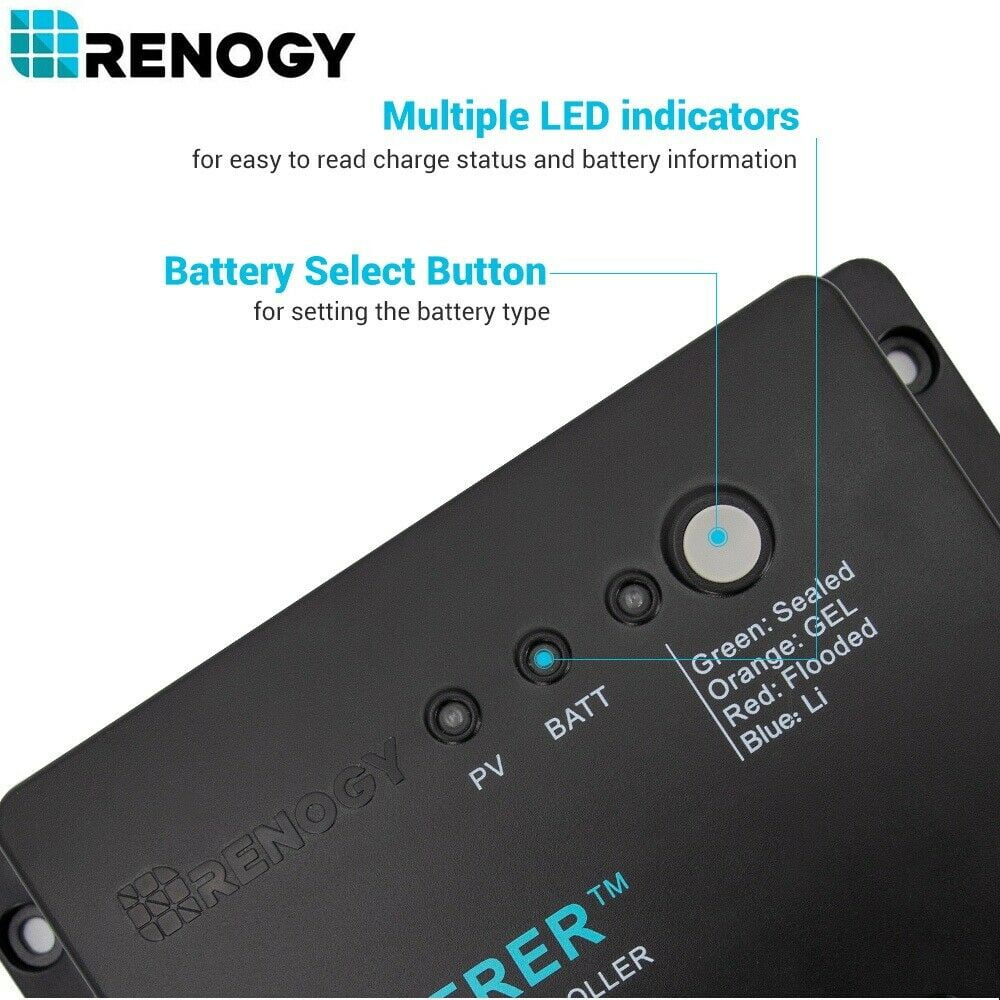

  • 【Smart Function】The Wanderer PWM Charge Controller is compatible with four different types of batteries: Sealed, Gel, Flooded, and Lithium batteries. It also features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.

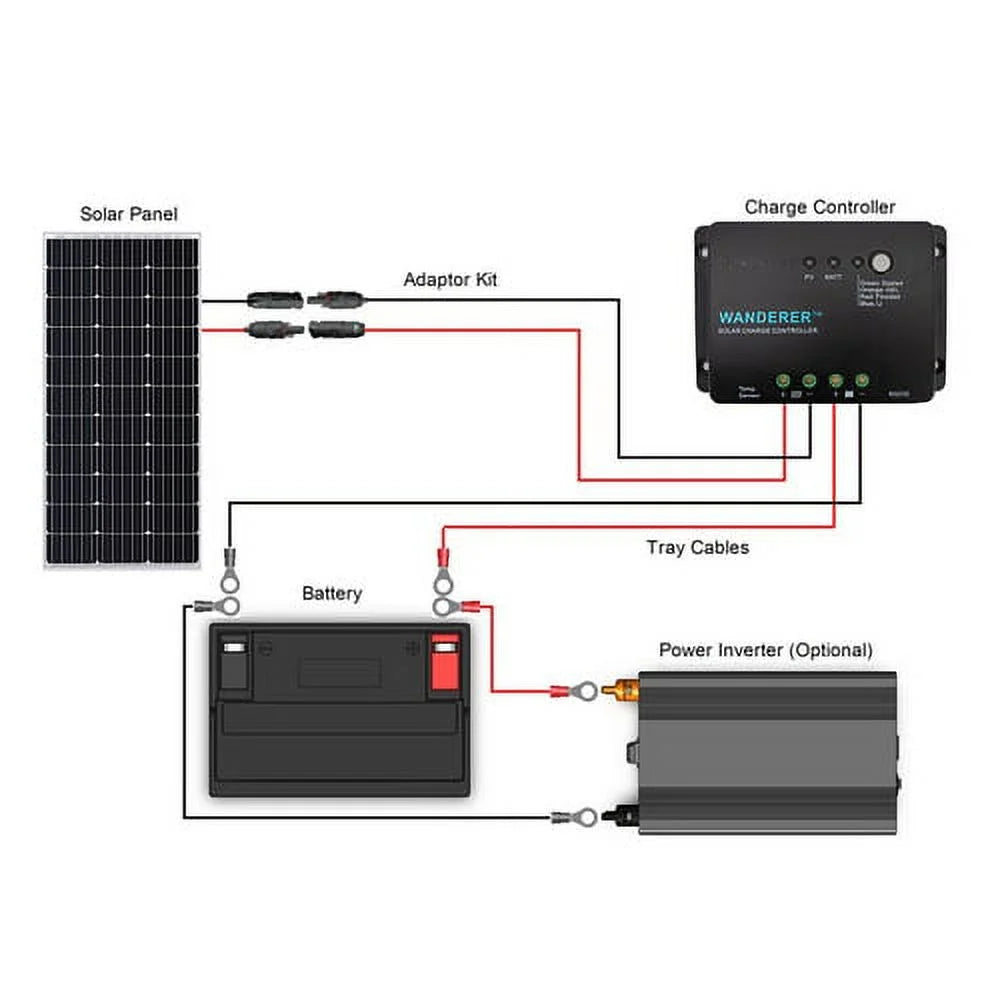

  • 【Ready to Install】This Renogy Solar Kit includes all of the equipment necessary for building a new system. The included cables, Z-brackets, and pre-drilled holes on the back frame of the panel allow fast and secure mounting. With the Wanderer Li 30A PWM Charge Controller, the kit can meet your further power needs by adding more of the same solar panels to expand up to 400W.
  • 【Full System Protection】The Wanderer PWM Charge Controller has a number of built-in protections to safeguard your systems, such as reverse polarity protection, battery overcharging protection,  overload protection, and short circuit protection.

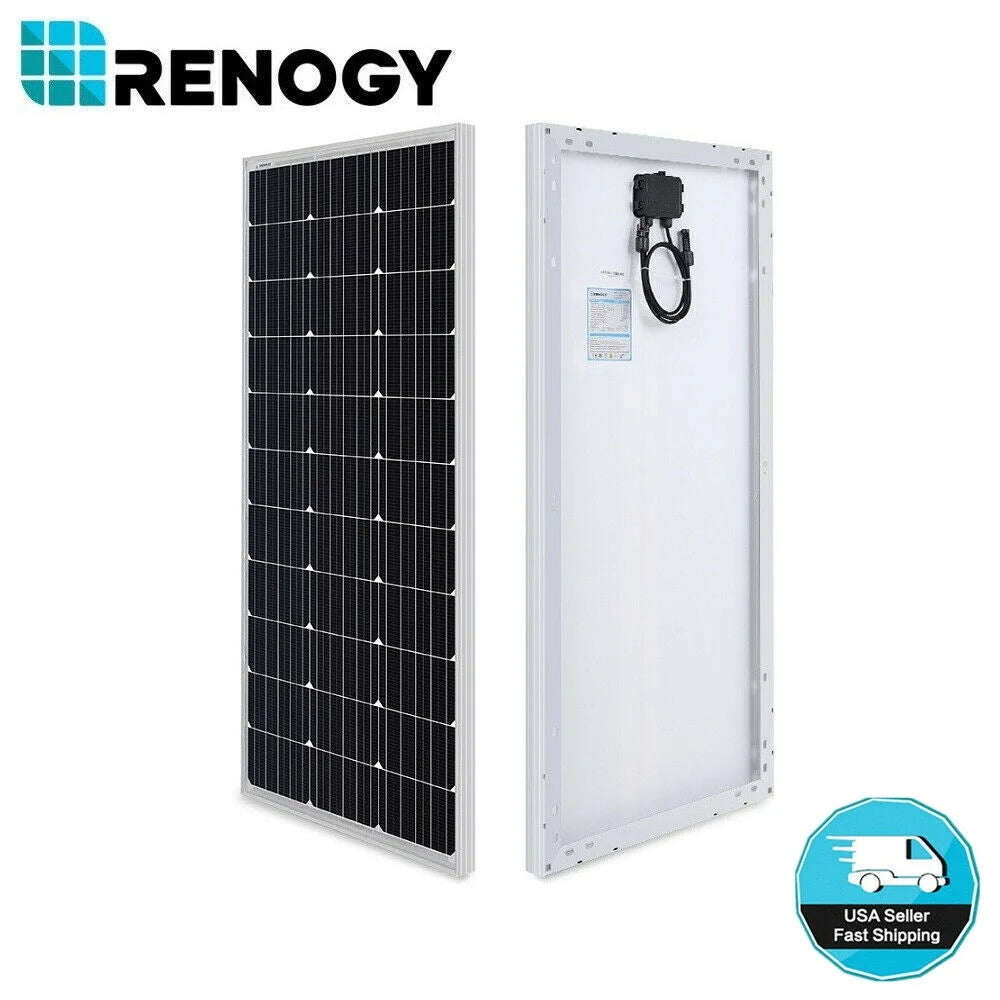

  • RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
    Maximum Power: 100W
    Open Circuit Voltage (VOC): 24.3V
    Short Circuit Current (ISC): 5.21A
    Optimum Operating Voltage (VMP): 20.4V
    Optimum Operating Current (IMP): 4.91A
    Operating Temperature: -40°F to 185°F(-40℃ to +85℃)
    Dimensions: 41.8*20.9*1.38in/1062x530x35mm
    Weight: 14.1 lb (6.4 kg)

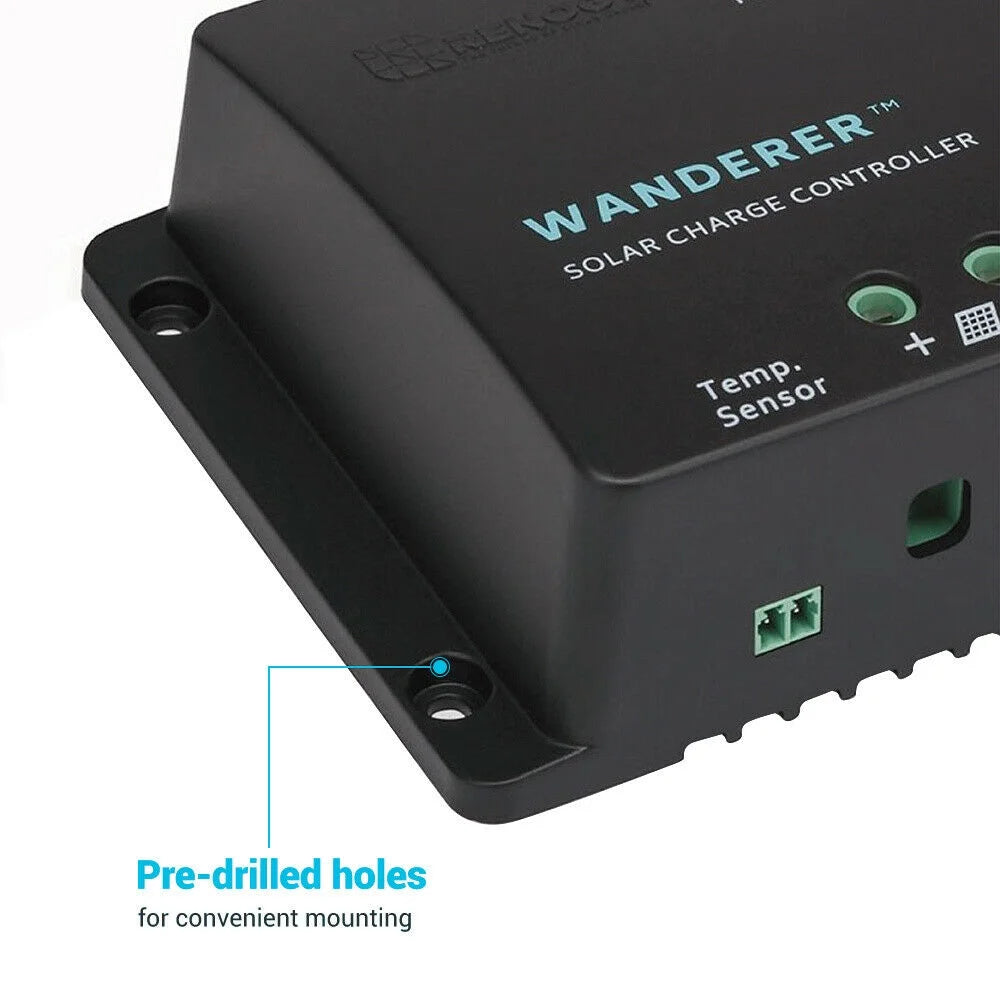

  • Wanderer Li 30A PWM Charge Controller
    Nominal Voltage: 12V
    Rated Charging Current: 30A
    Max. PV Input Voltage: 25 VDC
    Max Gauge Size: Up to 8AWG
    Max. PV Input Power: 400W at 12V
    Dimensions: 6.45 x 4.31 x 1.76in (163.8 x 109.6 x 44.7mm)
    Weight: 0.65 lbs (0.29 kg)

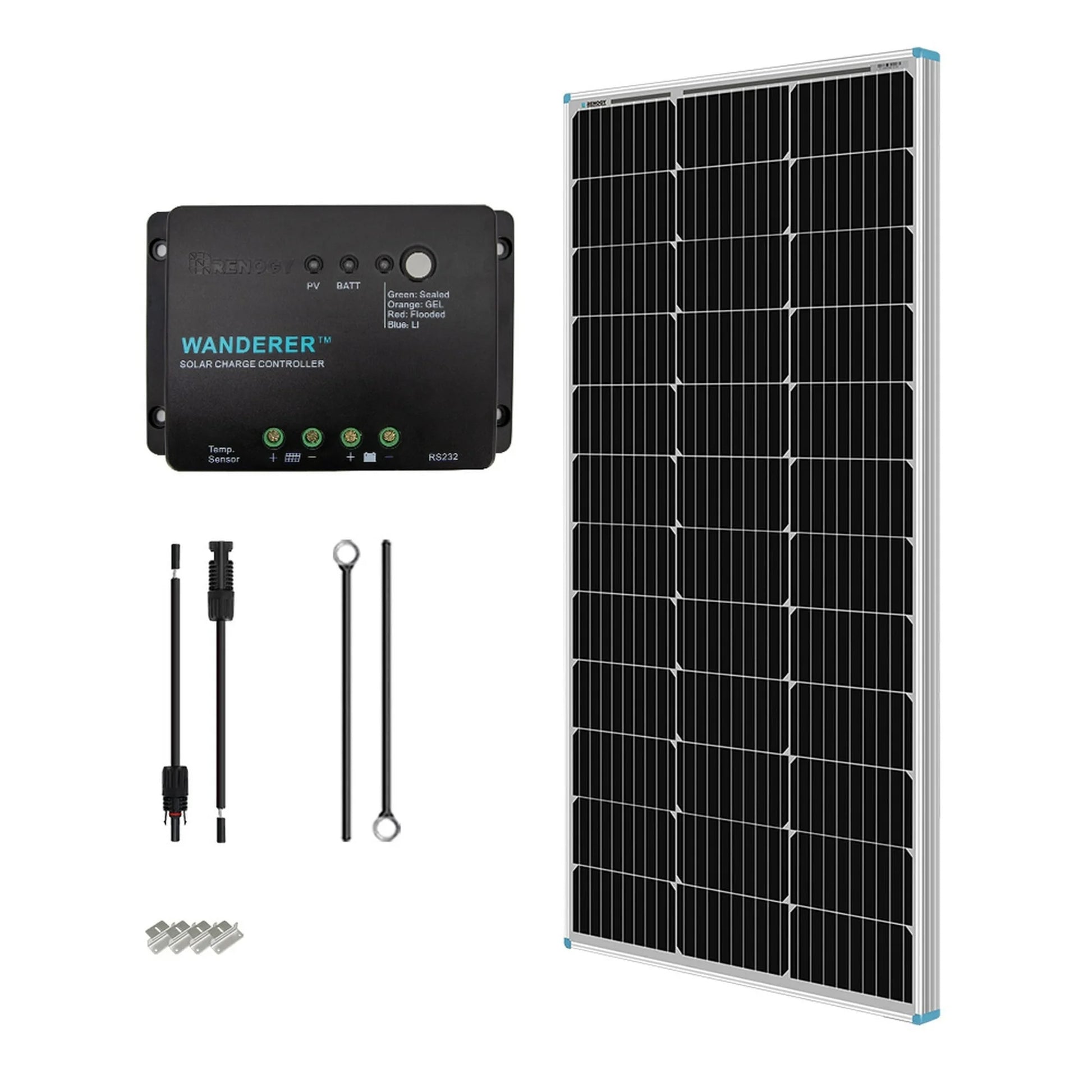

  • Package Includes:
    1 x 100W Mono Panel
    1 x Wanderer Li 30A PWM Charge Controller

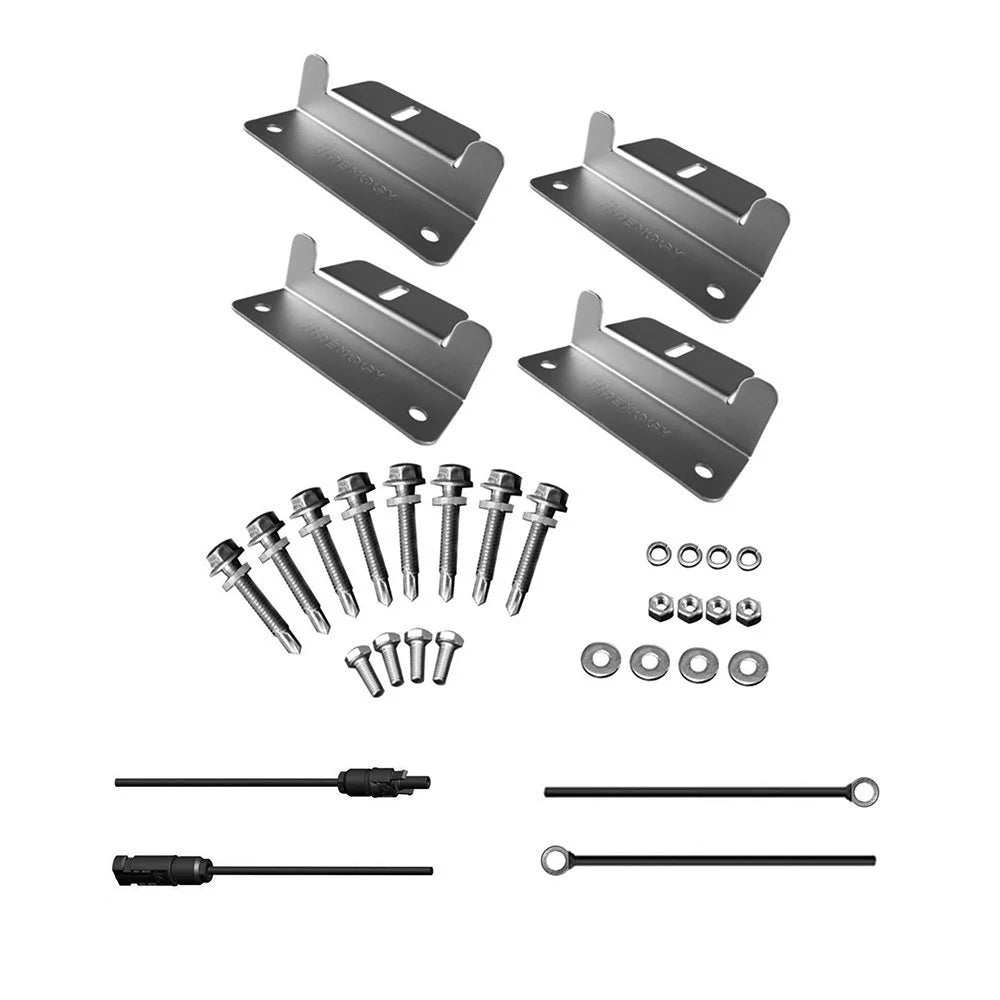

    1 x Mounting Z Brackets
    1 x Renogy 20ft 10AWG Solar Adaptor Kit (A pair)
    1 x Renogy 8ft 10AWG Tray Cables (A pair)
