Renogy 100W Monocrystalline Solar Pannel Kit with 40A MPPT Charge Controller, High Efficiency System Expansion Wide Temperature Range

Renogy 100W Monocrystalline Solar Pannel Kit with 40A MPPT Charge Controller, High Efficiency System Expansion Wide Temperature Range

$700.00 USD
$599.00 USD $700.00 USD
Sale Sold out
  • 【Efficient】High solar cell efficiency: Monocrystalline 18.4%. Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments. The included MPPT charge controller has a peak efficiency of 97%

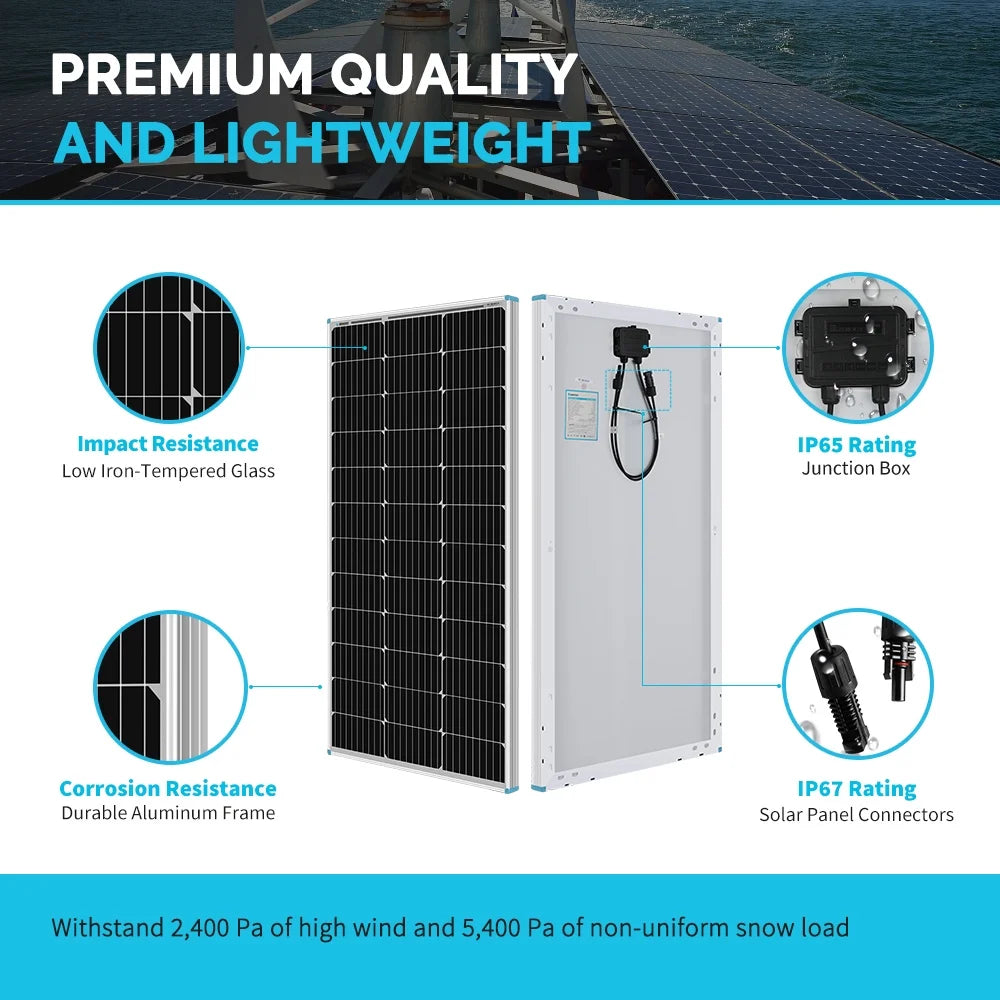

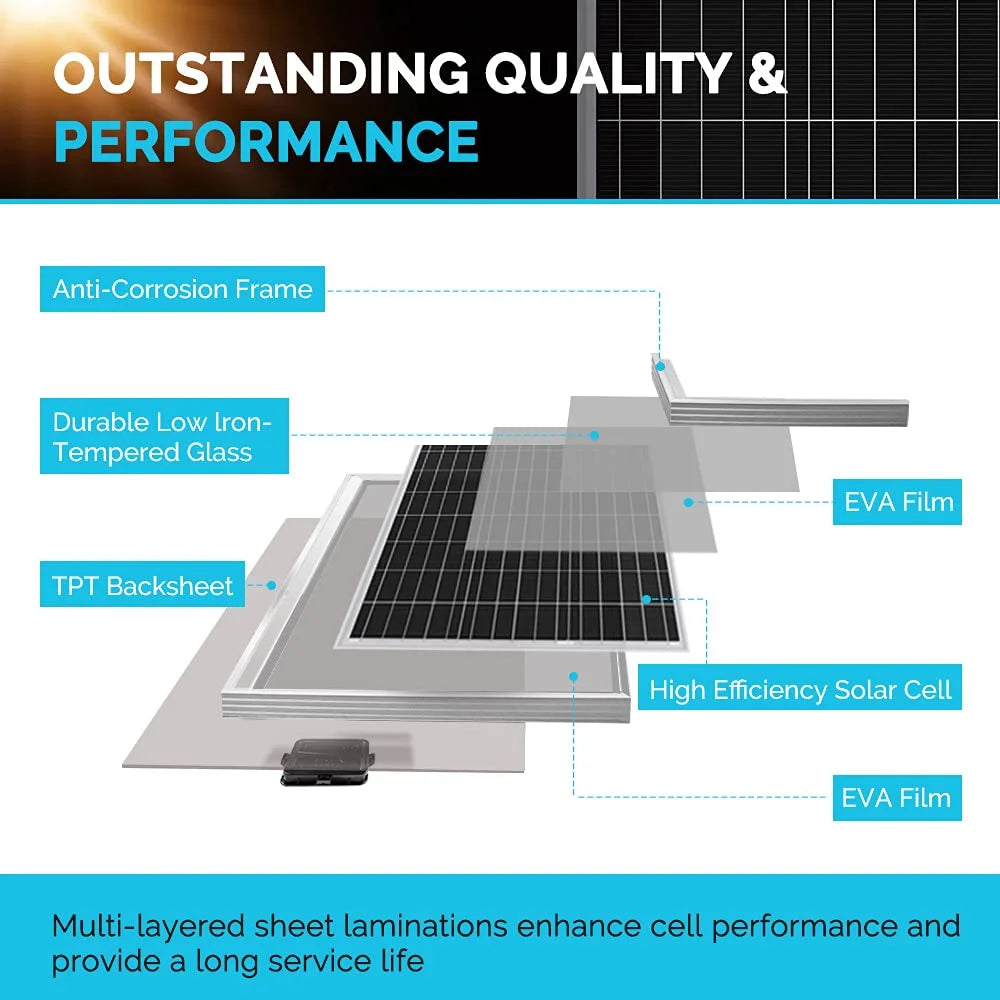

  • 【Reliable】EL tested solar modules; no hot-spot heating guaranteed. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades. TPT back sheet ensures smooth performance over a long period of time. IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
  • 【Intuitive】Sealed, Gel and Flooded charging algorithim ready. 4-Stage battery charging process for a rapid, efficient, and safe battery charging. Timer function with 1-15 hour option

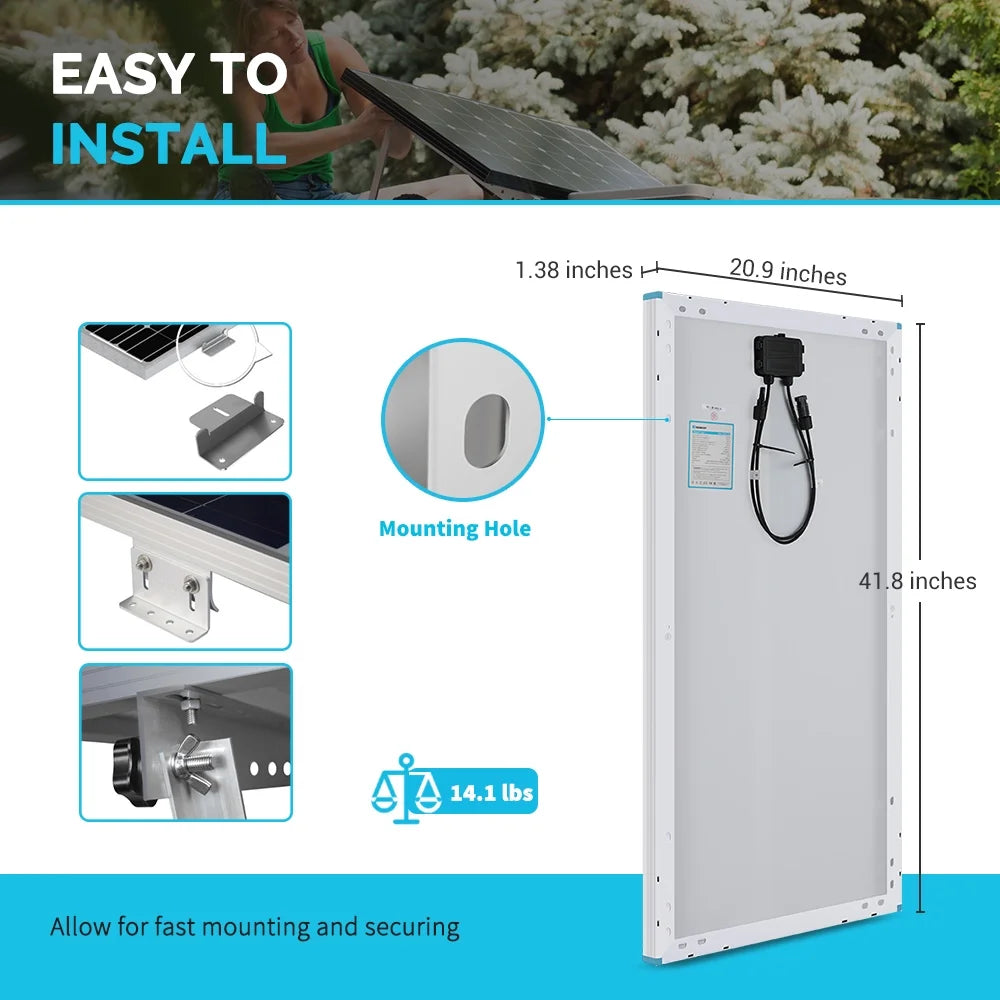

  • 【Safe】The Renogy 20A/40A MPPT is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity. Pre-drilled holes on the back of the panel allow for fast and secure mounting.
  • 【Expandable】With a Renogy 20A MPPT Charge Controller, you can expand your system up to a maximum of 200W (12 Volt) or 400W (24 Volt). With a Renogy 40A MPPT Charge Controller, you can expand your system up to a maximum of 400W (12 Volt) or 800W (24 Volt). The Renogy 100W Monocrystalline Expansion Kit is the perfect solution for future expansion.
  • Please note:
    When you add panels to your system, you will need one set of Z brackets for each additional panel. You will also need one pair of branch connectors to expand your system to 600W or 800W
  • RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
    Maximum Power: 100W
    Maximum System Voltage: 600V DC (UL): 600V DC (UL)
    Optimum Operating Voltage (Vmp): 18.9V
    Open-Circuit Voltage (Voc): 22.5V
    Optimum Operating Current (Imp): 5.29A
    Short-Circuit Current (Isc): 5.75A
    Dimensions: 47.0 X 21.3 X 1.4 inches
    Weight: 16.5lbs

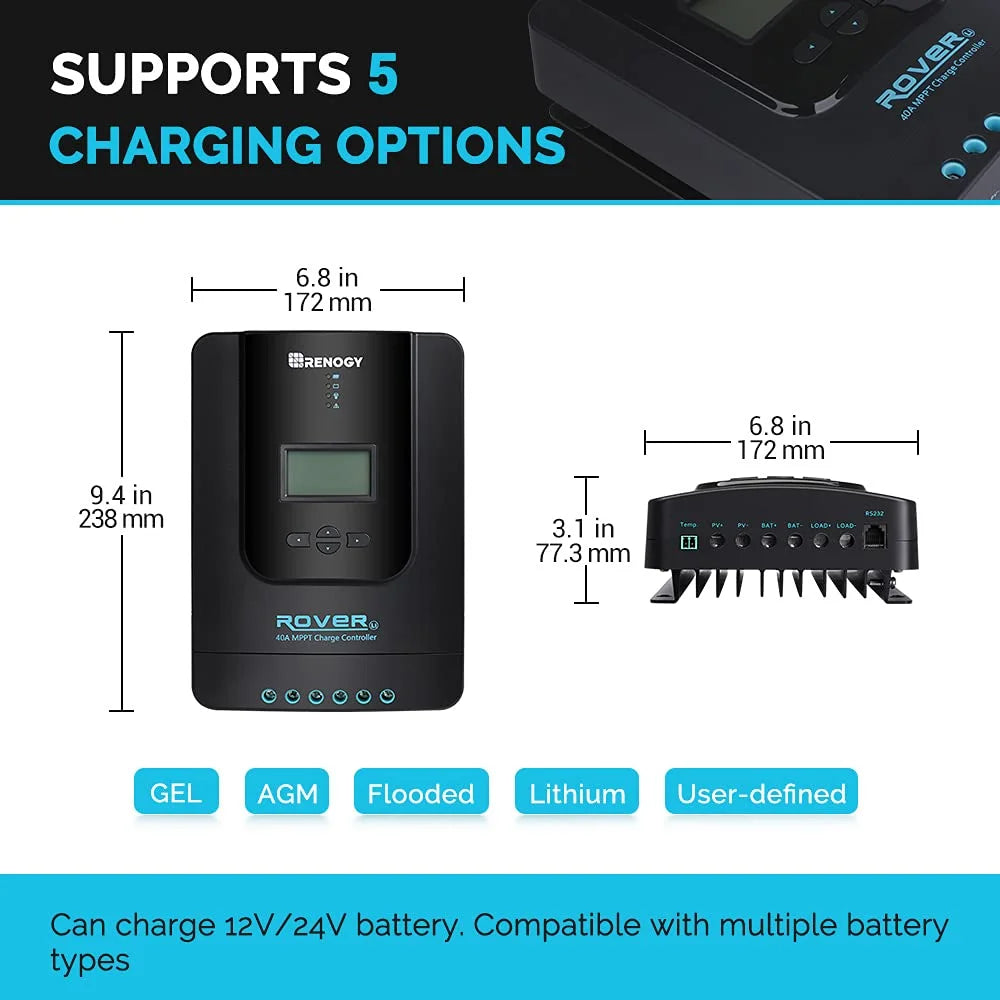

  • RENOGY ROVER 20A MPPT CHARGE CONTROLLER
    Rated Battery Current: 40A
    Rated Load Current: 20A
    Max. PV Input Short Current: 50A
    Max. Battery Voltage: 32V
    Max Solar Input Voltage: 100VDC

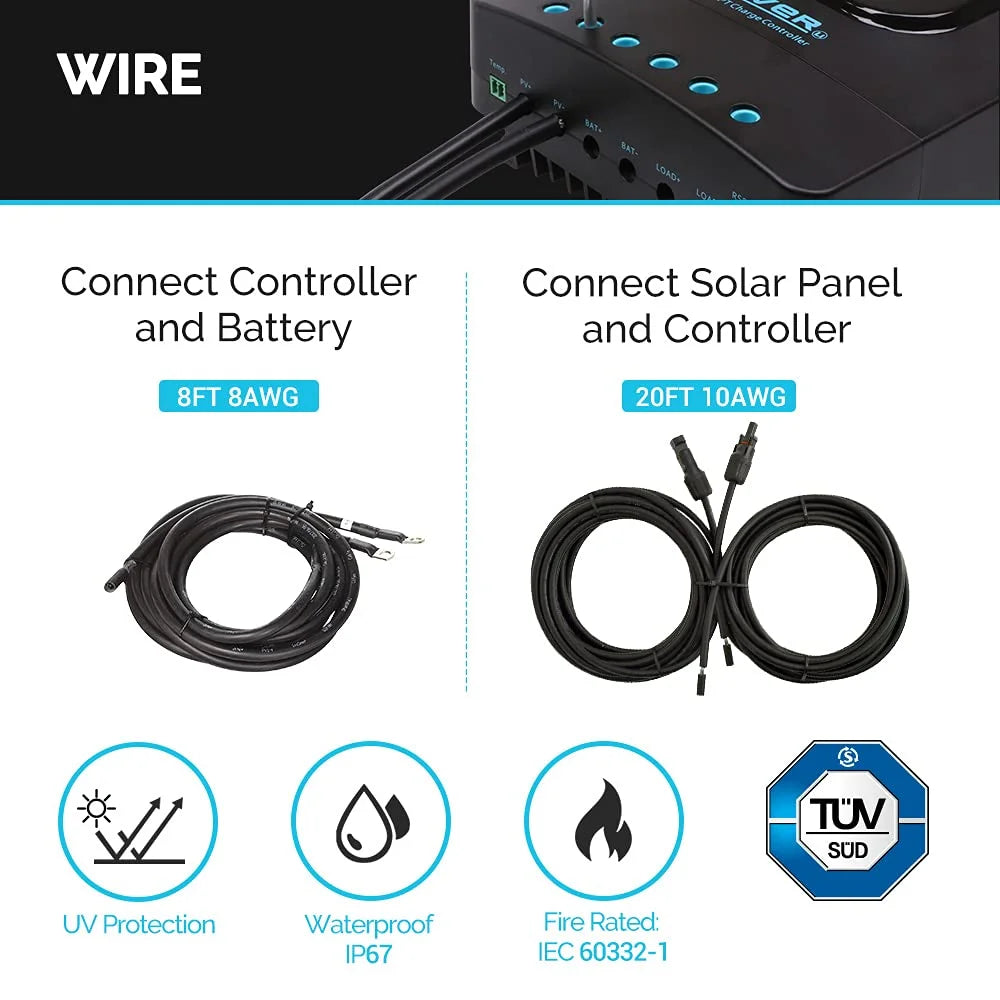

  • RENOGY 8FT 8AWG OR 10AWG TRAY CABLES (A PAIR)
    Length: 8ft
    AWG: 8 Or 10
    Rating Voltage: 600/1000V
    Temperature: -40°F to +185°F
  • RENOGY 20FT 10AWG MC4 ADAPTOR KIT (A PAIR)
    Length: 20ft
    AWG: 10
    Rating Voltage: 600/1000V
    Temperature: -40°F to +185°F

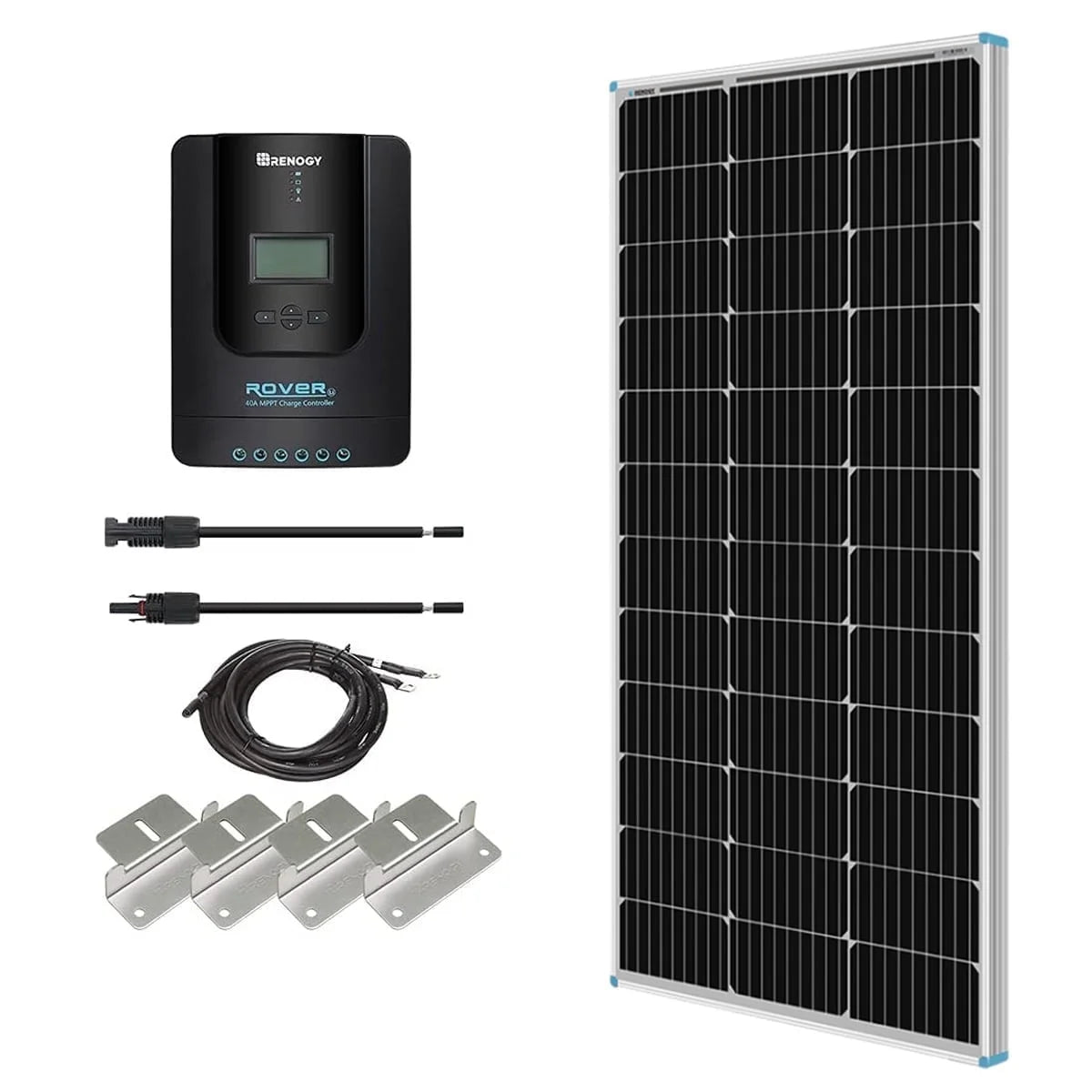

  • Package Includes:
    1 x 100W Mono Solar Panel
    1 x Rover 20A OR 40A MPPT Charge Controller

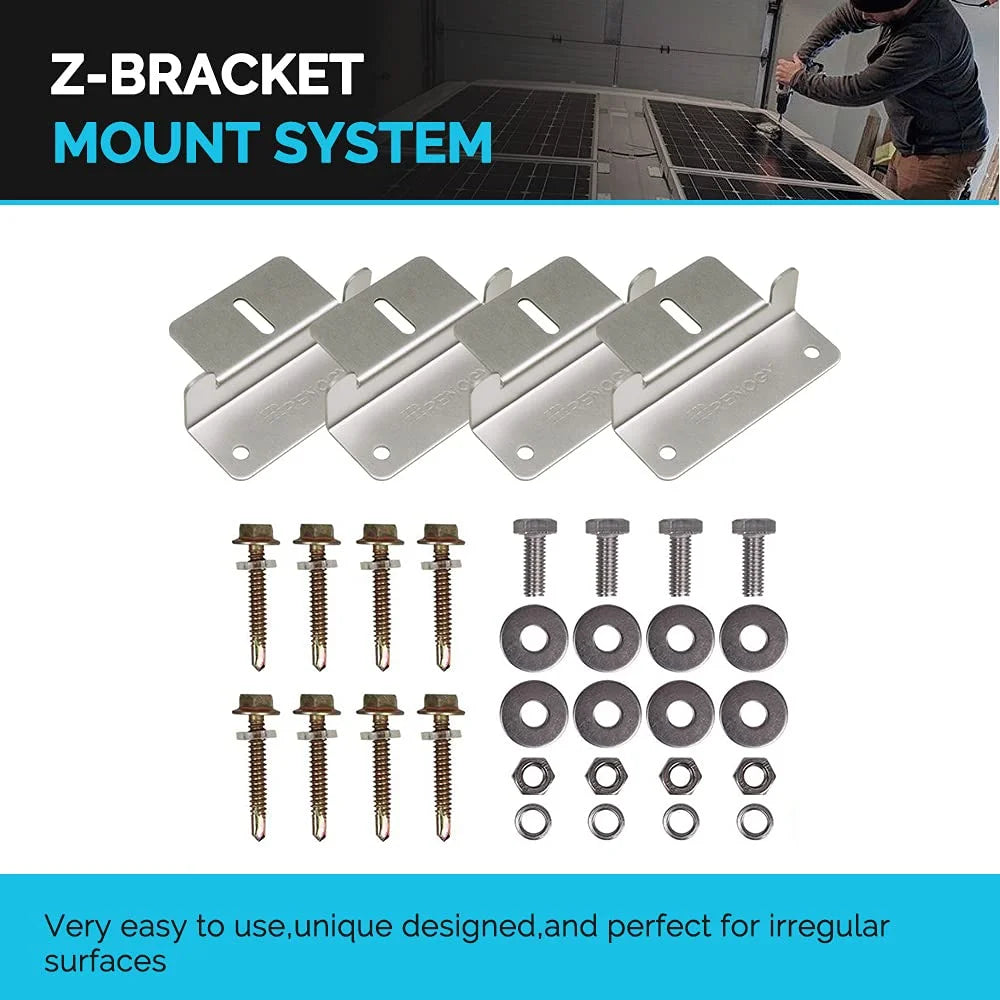

    1 x Mounting Z Bracket
    (8 × Long Cap Bolts, 4 × Short Bolts, 4 × Spring Washers， 4 × Washers， 4 × Z Shape Solar Panel Brackets, 4 × Nuts）
    1 x Renogy 20ft 10AWG MC4 Adaptor Kit (A pair).
    1 x 8ft 8AWG Tray Cables
